  9. Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 160 GPM

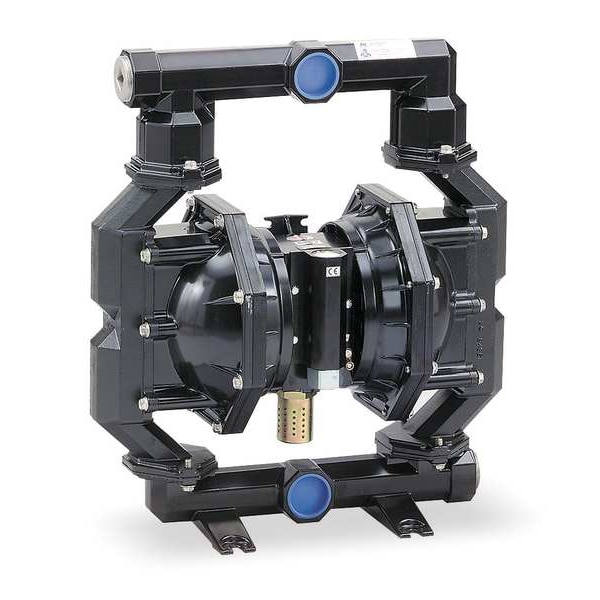

Aro Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 160 GPM PF20A-AAS-SAA-B - main

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 160 GPM

  • Mfr # PF20A-AAS-SAA-B

  • Zoro # G2501633

product price: $3,938.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene®
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PF20A-AAS-SAA-B
Zoro #
G2501633
UPC #
638845431491
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/4 in FNPT
Manufacturers Warranty Length
5 yr
Overall Height
26.3 in
Overall Length
23.2 in
Overall Width
21-5/8 in
Media Discharge Connection Size
2 in
Media Intake Connection Size
2 in
Solid Diameter (Maximum)
2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene®
Valve Type
Ball
Air Consumption (Maximum)
140 scfm
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Santoprene
Media Temperature (Maximum)
200 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
120 psi
Pump Operation Type
Air
Self-Priming Dry
14 ft
Agency Compliance
ATEX, CE, REACH, RoHS
Inlet/Outlet
2 in
Standards
ATEX Certified, CE, REACH, RoHS
Flow Rate @ 40 psi
100 gpm
Media Intake Connection Type
NPTF
Chemical Compatibility
Alcohol, Antifreeze, Diesel Exhaust Fluid, Water
Flow Rate @ 90 psi
157.6 gpm
Priming
Self-Priming
Flow Rate @ 60 psi
130.4 gpm
Feet of Head (Maximum)
289 ft
Media Discharge Connection Type
NPTF
For Use With Potable Systems
No
Flow Rate @ 80 psi
150.25 gpm
Nameplate Voltage
N
Series
PF20X
Flow Rate (Maximum)
178 gpm
Mounting Hardware Material
Stainless Steel
Flow Rate @ 100 psi
162.5 gpm
Viscosity (Maximum)
50,000 cps
Air Intake Pressure (Maximum)
120 psi
Manifold Connection Type
NPT
Series Family
Specialty
Media Intake Location
Center, Side
Wetted Housing Material
Aluminum
Media Discharge Location
Center, Side
Flow Rate @ 120 psi
178 gpm
Flow Rate @ 70 psi
138 gpm
Flow Rate @ 50 psi
119 gpm

Description

Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 178 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 2 in, Media Intake Connection Type NPTF
