Shop DELAVAN FLUID POWER

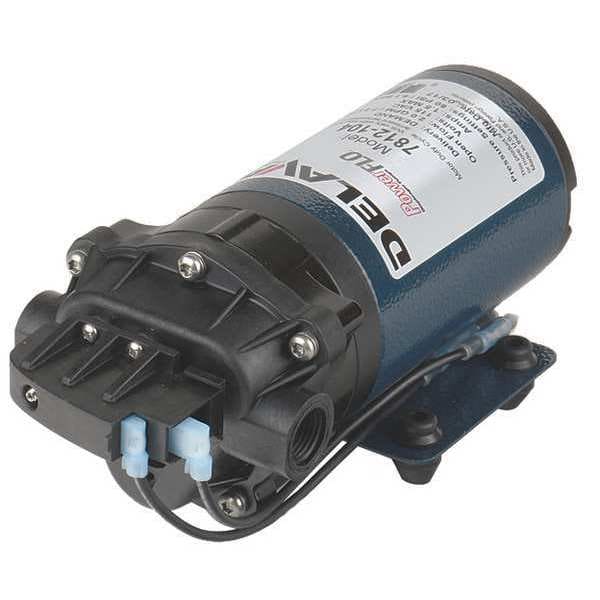

Diaphragm Pump, Polypropylene, Santoprene, 115, 2.0 GPM 140 Degrees F

  • Mfr # 7812-104

  • Zoro # G1593282

product price:  $161.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
3/8 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7812-104
Zoro #
G1593282
UPC #
830344002084
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/8 in FNPT
Overall Length
8.5 in
Overall Width
4 in
Overall Height
3.5 in
Media Intake Connection Size
3/8 in
Media Discharge Connection Size
3/8 in
Intake Connection Size
3/8 in
Discharge Connection Size
3/8 in
Shaft Outer Diameter
8 mm
Discharge Diameter
3/8 in
Inlet Diameter
3/8 in
Wire Rope Length
8.5 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Inlet/Outlet
3/8 FNPT
Fuse Amps
1.5 A
Motor Type
Totally enclosed Nonventilated
Pressure Switch
Yes
Diaphragm Design
Three Chamber
Prime in Feet
8
Pressure Off
60 psi
Pressure On
20 psi
Type
Diaphragm
Agency Compliance
CE/NSF
Features
3-Pin Wall Plug
Pump Operation Type
Electric
Standards
NSF Certified
Flow Rate @ 40 psi
1.5 gpm
Nameplate Voltage
120V AC
Series
7800
Flow Rate (Maximum)
2 gpm
Diaphragm Chamber Design
3
Priming
Self-Priming
Motor Enclosure
Totally Enclosed Non-Ventilated
Flow Rate @ 20 psi
1.6 gpm
Flow Rate @ 0 psi
1.7 gpm
Current
1.5 A
Media Intake Connection Type
FNPT
Media Discharge Connection Type
FNPT
Check Valve Material
FKM
Housing Material
Polypropylene
Discharge Connection Type
FNPT
Intake Connection Type
FNPT
Self-Priming Lift - Maximum
12 ft
Frequency
60 Hz
Pressure Switch Off Pressure
60 psi
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Chemical Compatibility
Fertilizer, Herbicide
Includes Heat Sink
No Heat Sink Included
Motor Speed - Maximum
2,200 RPM
Pump Control Type
Demand
Discharge Pressure - Maximum
60 psi
Gasket Material
FKM
Includes Gearbox
No Gearbox Included
Fluid Head Material
Polypropylene
Power Source
Electric
Pump Technology
Diaphragm
Electrical Connection Type
Power Cord with Plug
Pressure Switch On Pressure
50 psi
Media Temperature - Maximum
140 Degrees F
Pump Drive Configuration
Electric Motor Unit
Full Load Current
22.5
Number of Diaphragms
1
Includes Regulator
No Regulator Included
Feet of Head (Maximum)
138.4 ft
Phase
Single
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 3, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 3/8 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 2 gpm, Housing Material Polypropylene, Intake Connection Size 3/8 in, Intake Connection Type FNPT, Nameplate Voltage 120V AC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 1.6 gpm, Current 1.5 A
