Shop ARO

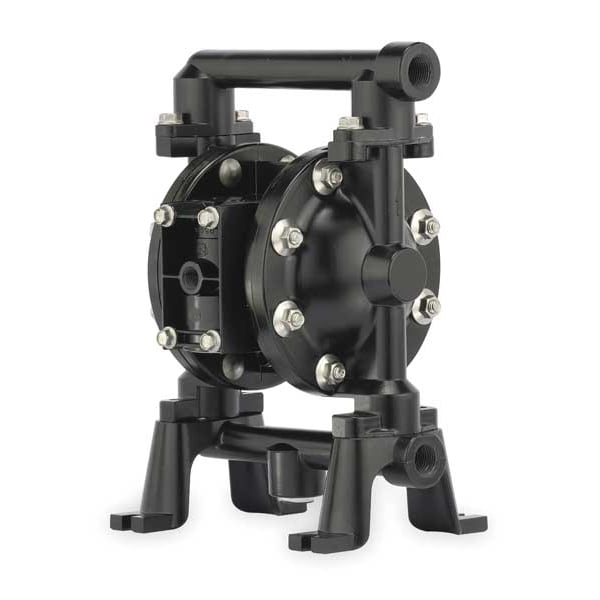

Double Diaphragm Pump, Aluminum, Air Operated, Viton, 12 GPM

  • Mfr # 670042

  • Zoro # G2325626

product price:  $1,149.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
FKM
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
670042
Zoro #
G2325626
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Height
11.8 in
Overall Width
8.2 in
Overall Length
8.2 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Solid Diameter (Maximum)
0.09 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
FKM
Valve Type
Ball
Air Consumption (Maximum)
20 scfm
Air Intake Connection Type
NPT
Check Seat Material
Aluminum
Diaphragm Material
Viton®
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
50 psi
Standards
UL 79, ATEX (CE Ex11 2GD X)
Agency Compliance
ATEX, CE, REACH, RoHS, UL79
Self-Priming Dry
10 ft
Pump Operation Type
Air
Self-Priming Wet
15 ft
Inlet/Outlet
1/2 in
Feet of Head (Maximum)
215 ft
Series Family
Specialty
For Use With Potable Systems
No
Media Intake Connection Type
NPT
Wetted Housing Material
Aluminum
Flow Rate @ 40 psi
9.5 gpm
Viscosity (Maximum)
15,000 cps
Flow Rate @ 50 psi
10.9 gpm
Air Intake Pressure (Maximum)
50 psi
Media Discharge Connection Type
NPT
Manifold Connection Type
NPT
Chemical Compatibility
Diesel, Gasoline, Kerosene, Oil
Nameplate Voltage
N
Flow Rate (Maximum)
12 gpm
Priming
Self-Priming
Manifold Port Connection Type
Multiport
Wetted Body Material
Aluminum
Displacement Per Stroke
0.019 gal
Diaphragm Reinforcement
Fabric Reinforced
Media Discharge Port Configuration
Side
Manifold Connection Standard
NPT
Mounting Hardware Material
Stainless Steel
Media Intake Port Configuration
Center Horizontal, Center Vertical, Side
Media Discharge Location
Top
Center Section Material
Aluminum
Diaphragm Base Material
FKM
Series
Compact
Fluid Chamber Assembly Type
Bolted
Includes Solenoid
No Solenoid Included
Material Conductivity
Conductive
Media Intake Location
Bottom

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Aluminum, Diaphragm Material Viton, Feet of Head (Maximum) 125 ft, Flow Rate (Maximum) 10.9 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPTF, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Media Temperature (Maximum) 225 Degrees F
