  9. Pump, Rotary Vane, Brass, Max. Flow (GPH): 346
Shop All Rotary Pumps
Procon

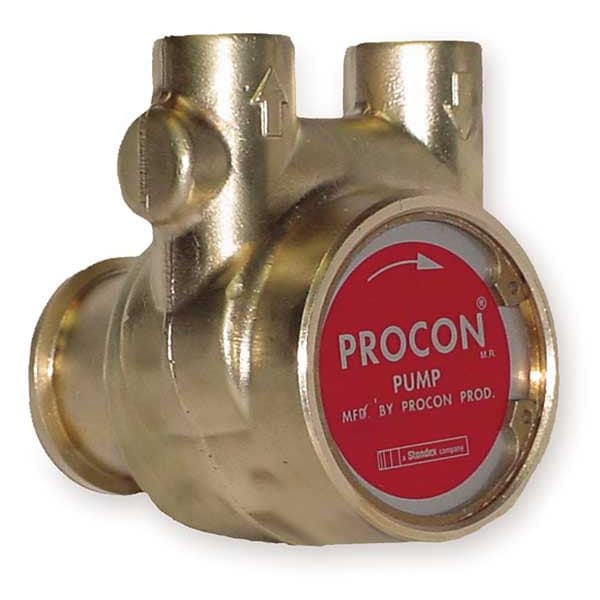

Pump, Rotary Vane, Brass, Max. Flow (GPH): 346

product price: $220.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP @ 50 PSI 1/3 hp
  • Body Material Brass
  • Mounting Carbonator Clamp Style
  • HP @ 250 PSI 1 1/4 hp
  • GPH 330 gph
See all product information

Product Information

Dimensions

Overall Length 4.3 in
Overall Width 3.4 in
Overall Height 3.8 in
Shaft Outer Diameter 1/2 in
Discharge Connection Size 1/2 in
Media Intake Connection Size 1/2 in

Details

Item Rotary Vane Pump
HP @ 50 PSI 1/3 hp
Body Material Brass
Mounting Carbonator Clamp Style
HP @ 250 PSI 1 1/4 hp
GPH 330 gph
GPH of Water @ 200 PSI 327 gph
Relief Pressure Max. (PSI) 250 psi
HP @ 200 PSI 1 hp
HP @ 150 PSI 3/4 hp
GPH of Water @ 150 PSI 328 gph
Shaft 303 Stainless Steel
HP @ 100 PSI 1/2 hp
GPH of Water @ 100 PSI 330 gph
Max. Temp. (F) 158 Degrees F
By-Pass No
Max. Flow (GPH) 346 gph
GPH of Water @ 250 PSI 326 gph
Relief Valve PSI Setting 200 psi
Inlet/Outlet NPTF (In.) 1/2 in
Max. Pressure (PSI) 250 psi
External Relief Required
Min. Flow Rate (GPH) 326 gph
GPH of Water @ 50 PSI 331 gph
Shaft Material 303 Stainless Steel
Includes Relief Valve
Vane Material Carbon
Standards NSF, RoHS
Flow Rate @ 100 psi 330 gph
Flow Rate @ 200 psi 327 gph
Flow Rate @ 50 psi 331 gph
Operating Pressure - Maximum 250 psi
Discharge Connection Type NPT
NSF 169 Listed Yes
Operating Temperature - Maximum 160 Degrees F
Flow Rate @ 150 psi 328 gph
Feet of Head - Maximum 6 ft of head
Operating Temperature - Minimum -4 Degrees F
Seal Material Carbon, Ceramic
Viscosity - Maximum 100 cps
Includes Filter No
Compatible Motor Frame 48Y NEMA
Flow Rate - Maximum 330 gph
Media Intake Connection Type FNPT
For Media Type No
Flow Rate - Minimum 326 gph
Flow Rate @ 250 psi 326 gph

Description

Rotary Vane Pump, Flow Rate - Maximum 330 gph, Feet of Head - Maximum 6 ft of head, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Discharge Connection Size 1/2 in, Discharge Connection Type NPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type No, NSF 169 Listed Yes, Operating Pressure - Maximum 250 psi, Operating Temperature - Minimum -4 Degrees F

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
