  9. Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 13 GPM
Shop All Diaphragm Pumps
Aro

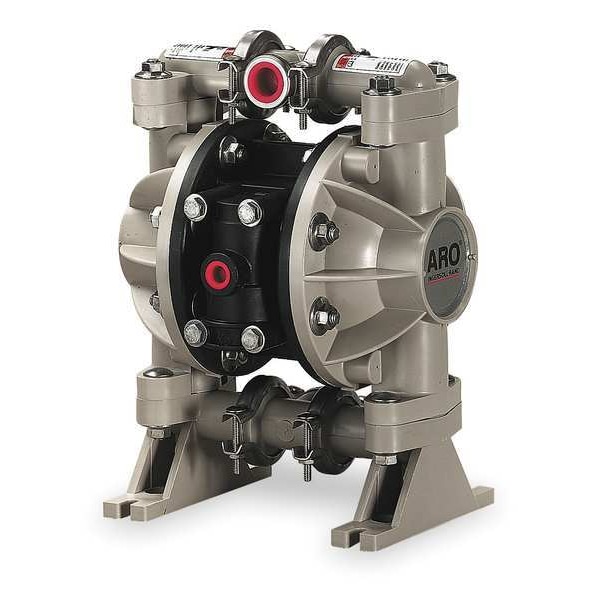

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 13 GPM

product price: $1,033.20
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Polypropylene
  • Diaphragm Material - Pumps PTFE
  • Max. Flow 13 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 150 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/2 in
Air Inlet Size 1/4 in FNPT
Max. Dia. Solids 3/32 in
Length 13 3/4 in
Height 7 1/2 in
Width 11 3/4 in
Manufacturers Warranty Length 5 yr
Overall Length 8.4 in
Overall Width 6.5 in
Overall Height 11.3 in
Solid Diameter (Maximum) 0.09 in
Air Intake Connection Size 1/4 in
Media Discharge Connection Size 1/2 in
Media Intake Connection Size 1/2 in

Details

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps PTFE
Max. Flow 13 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 150 Degrees F
Connection Style NPT
Agency Compliance CE, REACH, RoHS
Max. Operating Pressure 100 psi
Max. Flow GPM 13 gpm
Item Double Diaphragm Pump
Check Seat Material Polypropylene
Self-Priming Wet 15 ft
Diaphragm Material PTFE
Self-Priming Dry 10 ft
Valve Type Ball
Max. Temp. 150 Degrees F
Body Material Polypropylene
Ball Material PTFE
Manifold Connection Single Port
Operation Type Air Operated
Standards ATEX Certified
Operating Pressure (Maximum) 100 psi
Feet of Head (Maximum) 289 ft
Flow Rate @ 90 psi 12.9 gpm
Flow Rate @ 40 psi 9.2 gpm
Flow Rate @ 80 psi 12.6 gpm
Media Discharge Location Center
Air Intake Connection Type NPT
Flow Rate @ 60 psi 11.1 gpm
NPSHr 27.5 ft of head
Flow Rate (Maximum) 13.1 gpm
Pump Assembly Type Bolt
Nameplate Voltage N
Valve Material PTFE
Flow Rate @ 100 psi 13.1 gpm
Air Intake Pressure (Maximum) 100 psi
Media Temperature (Maximum) 225 Degrees F
Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Flow Rate @ 50 psi 10.2 gpm
Viscosity (Maximum) 15,000 cps
For Use With Potable Systems Yes
Priming Self-Priming
Media Discharge Connection Type NPTF
Media Intake Connection Type NPTF
Manifold Connection Type NPT
Air Consumption (Maximum) 20 scfm
Flow Rate @ 70 psi 12.1 gpm
Series 66605X
Wetted Housing Material Polypropylene
Media Intake Location Center
Non-Wetted Housing Material Plastic
Media Temperature (Minimum) 40 Degrees F
Series Family Compact

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 13.1 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPTF, Media Intake Location Center
