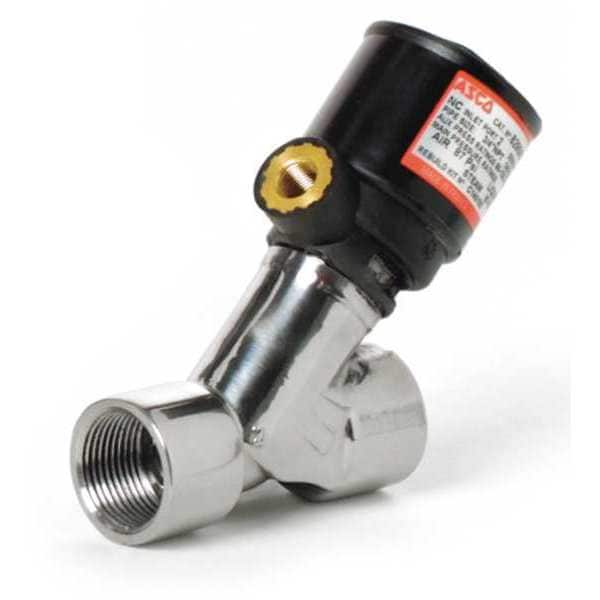

RedHat Angle Body Piston Valve, SS, NC, 1/2 In

  • Mfr # 8290A792

  • Zoro # G2532686

product price:
$
420.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2"
Operator Size
32 mm
Center Line Pipe Center Size
3 1/4"
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8290A792
Zoro #
G2532686
UPC #
094704500713
Country of Origin
United States
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Body Material
Stainless Steel
Item
Angle Body Piston Valve
Min. Operating Pressure Differential
0 psi
Body Material - Valves
316L Stainless Steel
Actuator
Pilot Solenoid Valve, Not Included
Ambient Temp. Range
15 Degrees to 140 Degrees F
Max. Operating Pressure Differential Water
180 psi
Min. Pilot Pressure
60 psi
Environmental Rating - Valves
Indoor, Outdoor
Seal Material - Valves
PTFE
Coefficient of Volume
4.1
Valve Ways and Positions
2-Way/2-Position
Viscosity
2,700 SUS
Disc Material
Stainless Steel
Max. Operating Pressure Differential Steam
150 psi
Max. Pilot Pressure
150 psi
Stem Material
Stainless Steel
Max. Fluid Temp.
366 Degrees F
Seal Material
FKM
Standards
FDA CFR21, RoHS
Ambient Temperature - Maximum
140 Degrees F
Pilot Pressure - Maximum
150 psi
Ambient Temperature - Minimum
15 Degrees F
For Media
Aggressive Gases, Aggressive Liquids, Air, Fuel Oil, Hot Water, Inert Gases, Light Oil, Oxygen, Steam, Water
Operating Pressure Differential Water - Maximum
180 psi
Fluid Temperature - Maximum
366 Degrees F
Operation Type
Pilot Operated
Actuator Type
Single Air Pilot
Pilot Pressure - Minimum
60 psi
Valve Positions
2-Position
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Environmental Rating
Indoor, Outdoor
Operating Pressure Differential Steam - Maximum
150 psi
Coefficient of Volume (Cv)
4.1
Valve Ways
2-Way
Valve Body Style
Angled
Thread Type
NPTF
Operating Pressure Differential - Minimum
0 psi
Outlet Connection Type
NPTF

Description

Angle Body Piston Valve, Nominal Pipe Size 1/2 in, Orifice Diameter 1/2 in, Coefficient of Volume (Cv) 4.1, Operating Pressure Differential - Minimum 0 psi, Operating Pressure Differential Steam - Maximum 150 psi, Operating Pressure Differential Water - Maximum 180 psi, Fluid Temperature - Maximum 366 Degrees F, Environmental Rating Indoor, Outdoor, Valve Ways 2-Way, Valve Positions 2-Position, Valve Starting Configuration Normally Closed, Body Material Stainless Steel, Seal Material FKM
