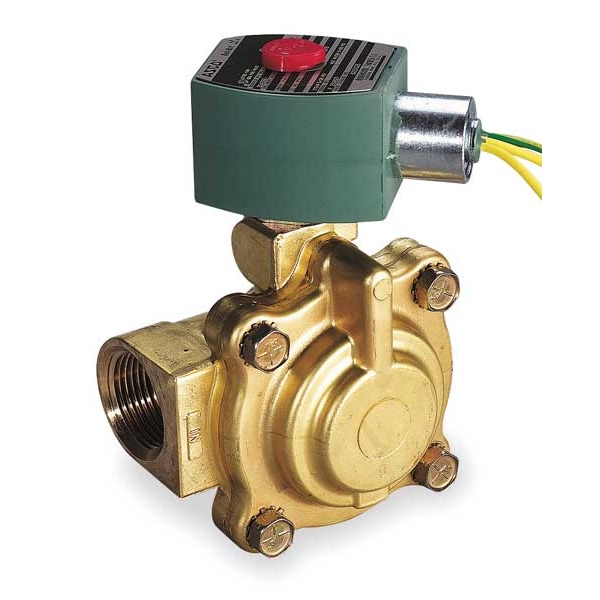

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120V AC, Slow-Closing, Brass
Mfr # 8221G007HW
Zoro # G0594641
Key Features
Specifications
Product Information
- MFR #
- 8221G007HW
- Zoro #
- G0594641
- UPC #
- 094703379884
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1 in
- Center Line Pipe Center Size
- 4-1/64 in
- Overall Height
- 5-5/8 in
- Overall Width
- 3-1/8 in
- Overall Length
- 3-3/4 in
- Orifice Diameter
- 1 in
- Wire Rope Length
- 3 3/4 in
- Length
- 3 3/4 in
Description
The ASCO 8221G007HW is a 2-way, 2-position pilot operated solenoid valve with a normally closed, slow-closing design. Constructed with a brass body and EPDM seals, it includes an coil and is equipped with NPTF inlet and outlet connections sized for 1 inch nominal pipe size. This solenoid valve operates at 120V AC with a coil wattage of 6.1 W, compatible with 50 Hz and 60 Hz electrical frequencies. Media compatibility: hot water and steam; maximum operating temperatures are 210°F (hot water) and 344°F (steam). Environmental ratings: Indoor/Outdoor; coil enclosure is corrosion-resistant and watertight; junction box not included.
Key Features:
- Valve Design: 2-Way/2-Position, pilot operated with slow-closing operation
- Configuration: Normally Closed starting position
- Body Material: Brass with EPDM sealing
- Connections: 1 in nominal pipe size, NPTF inlet and outlet threading
- Coil: Included, rated 6.1 W, Class F insulation, 120V AC, 50/60 Hz frequency
- Electrical Connections: 1/2 in conduit with 18 in leads
- Operating Pressure: Maximum 150 psi differential for air, inert gas, and hot water; minimum 5 psi differential required for water
- Flow Coefficient: Cv value of 3
- Dimensions: Overall length 3-3/4 in, overall height 5-5/8 in, overall width 3-1/8 in
- Environmental ratings: Indoor/Outdoor
- Seal Material: EPDM
- Orifice Diameter: 1 in
- Standards: CSA and UL Listed
