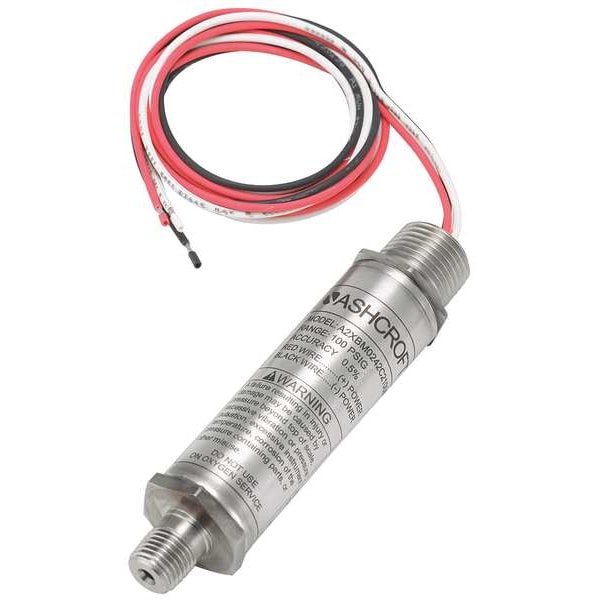

Explosion Proof Transducer, 0 to 5000 psi

  • Zoro #: G0122954
  • Mfr #: A2XBM0215C25000#G

$377.99

  • Process Connection: 1/4" NPT Male
  • For Use With: -
  • Process Connection Type - Transmitter: MNPT
See full product details
  • This item ships free.
  • Shipping & Returns
  • Sign up for Zmail and get 15% off your first order

Ashcroft #A2XBM0215C25000#G Specifications

  • Zoro #: G0122954
  • Mfr #: A2XBM0215C25000#G
Process Connection: 1/4" NPT Male For Use With: -
Process Connection Type - Transmitter: MNPT Output - Transmitter: 1 to 5VDC
Max. Pressure (PSI): 7500 Lead Length (In.): 36
Range Units - Transmitter: psi Operating Temp. - Transmitter: -40 Degrees to 257 Degrees F
Features: - Safety Rating - Transmitter: Class I, Div. 1 and 2, Groups A, B, C, D; Class II, Div. 1 and 2 , Groups E, F, G
Wiring Entry - Transmitter: 1/2" FNPT Item: Explosion Proof Pressure Transmitter
Output: 1 to 5VDC Safety Rating: Class 1, Div. 1 & 2 , Groups A, B, C, and D, Class 2, Div. 1 & 2 , Groups E, F, and G
Range: 0 to 5000 psi Operating Temp.: -40 to 257 F
Calibration Certificate: - Includes: Instructions
Thermal Error: +/-2% (-4 Degrees to 185 Degrees F) Wetted Materials: 316 Stainless Steel
Accuracy: +/-0.3% Electrical Connections - Transmitter: 3 ft. Cable
Accuracy - Transmitter: +/-0.25% Manufacturers Warranty Length: 1 yr.
Power Required: 10 to 36VDC Loop Resistance: -
NEMA Rating: 7 and 9 Power Required - Transmitters: 10 to 36VDC
Housing: 304 Stainless Steel Process Connection Size - Transmitter: 1/4"
Transmitter Type: Explosion Proof Pressure Transmitter Electrical Connections: 1/2" NPT Male Conduit
Compatible With: Any Process Compatible with 316Stainless Steel Wetted Materials - Transmitters: 316 Stainless Steel
Range Values - Transmitter: 0 to 5000 Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Explosion Proof Pressure Transmitter, Wetted Materials - Transmitters 316 Stainless Steel, Range Values - Transmitter 0 to 5000, Range Units - Transmitter psi, Accuracy - Transmitter +/-0.25 Percent, Electrical Connections - Transmitter 3 ft. Cable, Power Required - Transmitters 10 to 36VDC, Process Connection Size - Transmitter 1/4 In., Process Connection Type - Transmitter MNPT, Output - Transmitter 1 to 5VDC, Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
