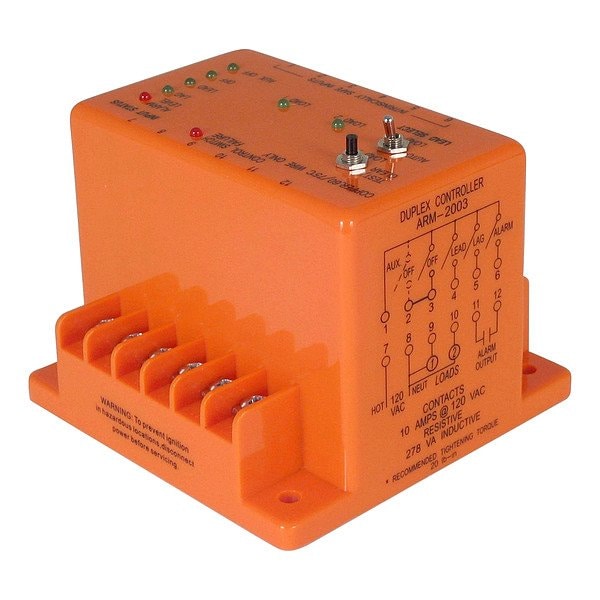

Alternating Relays
Mfr # ARM2003
Zoro # G916497953
product price:Â $620.99
/ea
Free Shipping & Returns
Key Features
Contact Form
SPST
Alternating Mode Selection Method
Control Switch
Standards
UL 913, UL Listed
Status Indicator
LED Indicates Next Load to Energize
Maximum Operating Temperature
131 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ARM2003
- Zoro #
- G916497953
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Body Width
- 4 in
- Overall Depth
- 3.25 in
- Body Height
- 3 in
- Body Depth
- 3.25 in
Details
- Contact Form
- SPST
- Alternating Mode Selection Method
- Control Switch
- Standards
- UL 913, UL Listed
- Status Indicator
- LED Indicates Next Load to Energize
- Item
- Alternating Relay
- Maximum Operating Temperature
- 131 Degrees F
- Mechanical Operating Durability
- 10,000,000
- Base Shape
- Square
- Mounting Style
- Surface
- Electrical Operating Durability
- 50,000
- Minimum Operating Temperature
- -4 Degrees F
- Number of Pins
- 3
- Contact Rating (AC)
- 10 A @ 120V AC, 10 A @ 24V AC
- Power Consumption
- 4 VA
- Series
- ARM Series
- Operating Modes
- Alternate
- Horsepower @ 120V AC
- 1/4 hp
- Frequency
- 50/60 Hz
- Coil Voltage
- 120V AC
Description
Alternating Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form SPST, Contact Rating (AC) 10 A @ 120V AC, 10 A @ 24V AC, Flat Pin Width Not Applicable, Number of Pins 3, Operating Modes Alternate, Status Indicator LED Indicates Next Load to Energize, Alternating Mode Selection Method Control Switch, Mounting Style Surface, Power Consumption 4 VA, Body Depth 3.25 in, Body Height 3 in, Body Width 4 in, Electrical Operating Durability 50,000, Frequency 50/60 Hz, Horsepower @ 120V AC 1/4 hp
