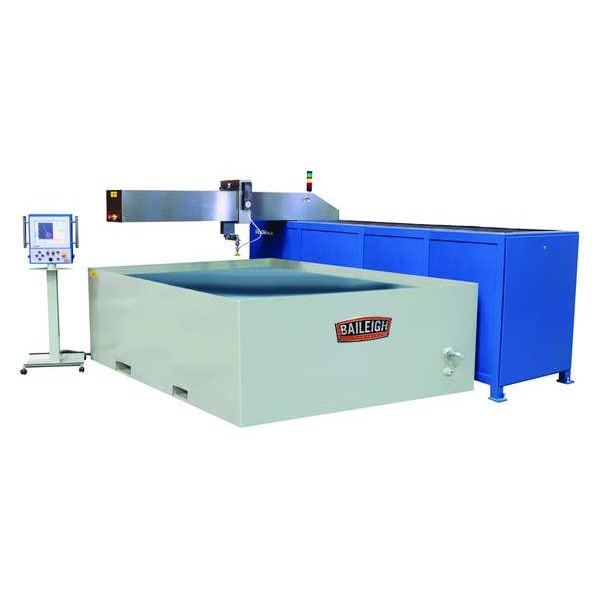

Baileigh Industrial Cantilever Waterjet, 3 Phase, 144" H, 130"W WJ-85CNC - main

Cantilever Waterjet, 3 Phase, 144" H, 130"W

  • Mfr # WJ-85CNC

  • Zoro # G6039350

product price: $236,555.99
/ea
Item requires special delivery charges. A $1,345.00 per item surcharge will be applied.

Key Features

Pump Type
Direct Drive
Overall Height
144 in
Max. Cutting Cap. Stainless Steel
2 1/4 in
Control System
ISSAC
Overall Depth
111 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WJ-85CNC
Zoro #
G6039350
UPC #
19907601760
Country of Origin
Malta

Dimensions

Overall Height
144 in
Overall Depth
111 in
Orifice Dia.
0.014"
Table Dimensions
96 in x 60 in
Overall Width
130 in
Nozzle Orifice Size
0.014 in
Table Width
60 in
Table Length
96 in

Details

Pump Type
Direct Drive
Max. Cutting Cap. Stainless Steel
2 1/4 in
Control System
ISSAC
Travel Speed
39 21/64 fpm
Z Axis Travel
5"
Number of Axis
3
Operating Pressure
55,000 psi
Cutting Accuracy
0.001 in
Features
Ability to Cut Just About Any Material with Precision;Cutting Table and Framework is Laser Cut and Interlocked and Welded for Strength and Rigidity to Ensure Accuracy During the Cutting Process
Includes
BobCAD-Cam V29 Express Design Software
Item
Waterjet Cutting Machine
File Formats
G-Code, DXF Import
Phase
Three
Voltage
460 V
X Axis Travel
98"
Max. Cutting Cap. Mild Steel
3 1/2 in
Repeatability
0.001"
Y Axis Travel
59"
Max. Flow Rate
7.92 gpm
Supported File Formats
DXF
CNC Operating System
Windows Based
Repeatability Accuracy
0.001 in
Filter Type
2 Stage/2 Filter: 10 and 1 microns
Software
BobCAD Cam
Number of Filters
2
For Workpiece Material
Aluminum, Ceramic, Copper, Foam, Glass, Granite, Mild Steel, Plastic, Stainless Steel, Titanium
Design
Cantilever
Hopper Capacity
250 lb
Maximum X-Axis Travel
98 in
Maximum Working Flow Rate
7.92 gpm
Maximum Input Pressure
30 psi
Image Formats
DXF
Wattage
30 W
Maximum Cutting Capacity Stainless Steel
2 1/4 in
Maximum Output Pressure
56,000 psi
Maximum Z-Axis Travel
6 3/4 in
Current
60 A
Maximum Cutting Capacity Mild Steel
3 1/2 in
Material Compatibility
Aluminum, Ceramic, Copper, Glass, Granite, Steel, Plastic, Stainless Steel, Titanium
Maximum Input Flow Rate
7.92 gpm
Maximum Y-Axis Travel
59 in

Description

Waterjet Cutting Machine, Table Dimensions 96 in x 60 in, Travel Speed 39 21/64 fpm, CNC Operating System Windows Based, Control System ISSAC, Cutting Accuracy 0.001 in, Design Cantilever, Features Ability to Cut Just About Any Material with Precision;Cutting Table and Framework is Laser Cut and Interlocked and Welded for Strength and Rigidity to Ensure Accuracy During the Cutting Process, Filter Type 2 Stage/2 Filter: 10 and 1 microns
