  9. Vertical Mill, 1Phase, 220V, 9 x 42In

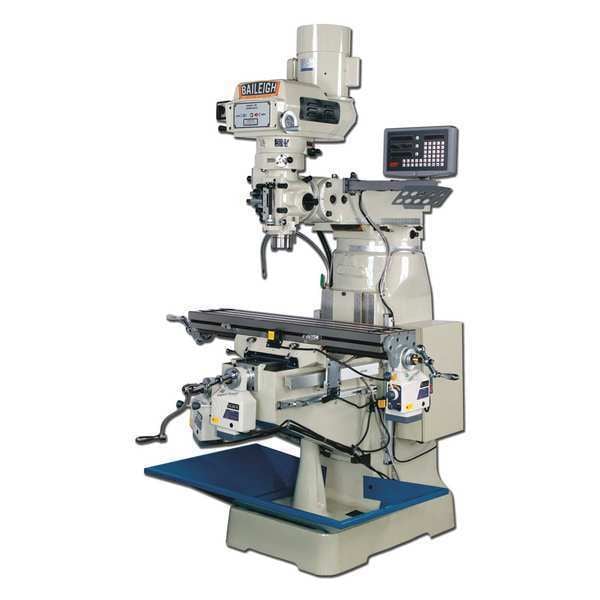

Baileigh Industrial Vertical Mill, 1Phase, 220V, 9 x 42In VM-942-1 - main

Vertical Mill, 1Phase, 220V, 9 x 42In

  • Mfr # VM-942-1

  • Zoro # G3476098

product price: $27,570.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Features
X, Y and Z Power Feed
Type
MANUAL
Includes
Coolant System with Catch Tray, Square Slide Ways
Quill Dia. (In.)
3-3/8
Motor HP
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM-942-1
Zoro #
G3476098
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Quill Dia. (In.)
3-3/8
Overall Height
89 in
T-Slot Size (In.)
5/8
Overall Depth
60 in
Table Size (In.)
9 x 42
Overall Width
60 in
Table Width
42 in
Table Length
9 in
Overall Length
60 in
Spindle Travel Length
5 in
Ram Travel Length
12 in
Spindle Taper Size
NST40
Quill Dia.
3 3/8 in
Quill Diameter
3 3/8 in
Table Work Surface - Depth
9 in
T-Slot Width
5/8 in
Table Work Surface - Width
42 in

Details

Item
Vertical Milling Machine
Features
X, Y and Z Power Feed
Type
MANUAL
Includes
Coolant System with Catch Tray, Square Slide Ways
Motor HP
3
Hz
60
Voltage
220V
Ram Travel (In.)
12
Max. Table Weight (lbs.)
2500
Spindle Speed (RPM)
72 to 4200
Knee Travel (In.)
16
Phase
Single
Quill Travel (In.)
5
Spindle Taper
NT40
Longitudinal Travel (In.)
12.00
Number of T-Slots
3
Cross Travel (In.)
30
Spindle to Table (In.)
16
Head Angle Front/Back (Deg.)
60
Head Angle (Deg.)
230
Max. Spindle Speed
4,200 RPM
Left-Hand Head Tilt
90 Degrees
Horsepower
3 hp
Min. Spindle Speed
80 RPM
Max. Spindle To Column Distance
12 in
Max. Spindle to Table Distance
16 in
Right-Hand Head Tilt
90 Degrees
Longitudinal Travel
12 in
Table Load Capacity
770 lb
Min. Spindle to Column Distance
0 in
Forward Head Tilt
45 Degrees
Backward Head Tilt Adjustment
45 Degrees
Number of Spindle Speeds
Variable
Series
VM-942
Includes Lights
Light Included
Maximum Ram Travel
12 in
Spindle to Table Distance
16 in
Spindle Speed - Maximum
2,700 RPM
Included Powerfeeds
X-Axis Powerfeed, Y-Axis Powerfeed, Z-Axis Powerfeed
Spindle To Column Distance - Maximum
12 in
Spindle Speed - Minimum
80 RPM
Includes Digital Readout
Digital Readout Included
Head Swivel - Right
90 Degrees
Maximum Spindle Travel
5 in
Head Tilt - Backward
45 Degrees
Drawbar Style
Manual
Head Swivel - Left
90 Degrees
Maximum Longitudinal Travel
12 in
Head Tilt - Forward
45 Degrees
Spindle to Column Distance - Minimum
12 in

Description

Vertical Milling Machine, Table Length 9 in, Table Width 42 in, 3 hp, Table Load Capacity 770 lb, Phase Single, Voltage 220V, Longitudinal Travel 12 in, Min. Spindle Speed 80 RPM, Max. Spindle Speed 4,200 RPM
