  9. Vertical Mill, 3Phase, 220V, 12 x 58In

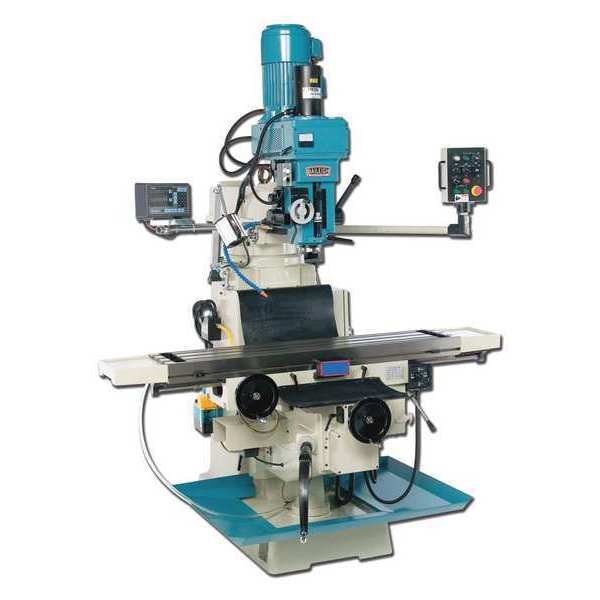

Baileigh Industrial Vertical Mill, 3Phase, 220V, 12 x 58In VM-1258-3 - main

Vertical Mill, 3Phase, 220V, 12 x 58In

  • Mfr # VM-1258-3

  • Zoro # G3476116

product price: $54,606.99
/ea
Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Key Features

Features
Oversized Table
Type
Manual
Includes
Rigid Head
Voltage
220V
Overall Depth
70 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM-1258-3
Zoro #
G3476116
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Depth
70 in
Quill Dia. (In.)
3-15/16
Overall Width
60 in
Overall Height
91 in
T-Slot Size (In.)
5/8
Table Size (In.)
12 x 58
Table Width
58 in
Table Length
12 in
Ram Travel Length
16.5300 in
Quill Dia.
3 15/16 in
Spindle Taper Size
NT40
Overall Length
60 in
Spindle Travel Length
5.5100 in
T-Slot Width
5/8 in
Quill Diameter
4 in
Table Work Surface - Width
58 in
Table Work Surface - Depth
12 in

Details

Item
Vertical Milling Machine
Features
Oversized Table
Type
Manual
Includes
Rigid Head
Voltage
220V
Knee Travel (In.)
17-23/32
Spindle Speed (RPM)
80 to 3800
Quill Travel (In.)
5-1/2
Longitudinal Travel (In.)
15.75
Spindle to Table (In.)
19.09"
Head Angle (Deg.)
230
Number of T-Slots
3
Hz
60
Cross Travel (In.)
36-39/64
Motor HP
5
Spindle Taper
NT40
Head Angle Front/Back (Deg.)
0
Phase
Three
Max. Table Weight (lbs.)
2500
Left-Hand Head Tilt
90 Degrees
Table Load Capacity
770 lb
Right-Hand Head Tilt
90 Degrees
Backward Head Tilt Adjustment
45 Degrees
Horsepower
5 hp
Max. Spindle to Table Distance
19 3/32 in
Max. Spindle To Column Distance
21.6500 in
Min. Spindle to Table Distance
19-3/32 in
Max. Spindle Speed
3,800 RPM
Min. Spindle to Column Distance
5-7/64 in
Forward Head Tilt
45 Degrees
Longitudinal Travel
15-3/4 in
Min. Spindle Speed
80 RPM
Series
VM-1258
Number of Spindle Speeds
Variable
Spindle Speed - Minimum
80 RPM
Spindle to Column Distance - Minimum
5 1/8 in
Includes Digital Readout
Digital Readout Included
Digital Readout Included
Mitutoyo
Head Tilt - Forward
45 Degrees
Head Tilt - Backward
45 Degrees
Maximum Longitudinal Travel
15 3/4 in
Spindle Speed - Maximum
3,800 RPM
Head Swivel - Right
90 Degrees
Spindle to Table Distance
19 1/8 in
Spindle To Column Distance - Maximum
21 5/8 in
Included Powerfeeds
X-Axis Powerfeed, Y-Axis Powerfeed, Z-Axis Powerfeed
Head Swivel - Left
90 Degrees
Maximum Spindle Travel
5 1/2 in
Drawbar Style
Air-Powered
Maximum Ram Travel
16 1/2 in

Description

Vertical Milling Machine, Table Length 12 in, Table Width 58 in, 5 hp, Table Load Capacity 770 lb, Phase Three, Voltage 220V, Longitudinal Travel 15-3/4 in, Min. Spindle Speed 80 RPM, Max. Spindle Speed 3,800 RPM
