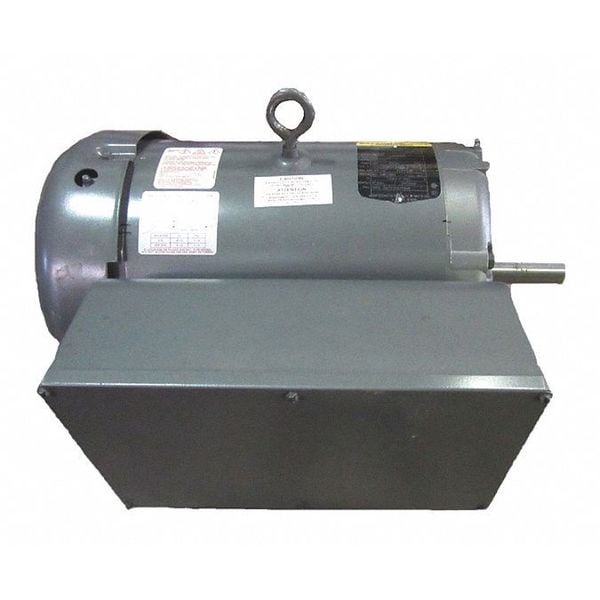

Capacitor-Start/Run General Purpose Motor, 10 hp HP, 215T Frame, 230V AC Voltage
Mfr # L3711T
Zoro # G8044827
product price:Â
$
2,716.99
/ea
Additional $170.00 delivery surcharge applies per item.
Key Features
Motor Design
Capacitor-Start/Run
Phase
Single
HP
10 hp
RPM Range
3,001-3,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- L3711T
- Zoro #
- G8044827
- UPC #
- 781568100899
- Country of Origin
- United States
Dimensions
- Shaft Length
- 3 3/8 in
- Length Less Shaft
- 15 5/8 in
- Overall Length
- 19 in
- Shaft Dia.
- 1 3/8 in
- Manufacturers Warranty Length
- 2 yr
- Shaft Diameter
- 1 3/8 in
- Frame Size
- 215T
- Wire Rope Length
- 19 in
- Length
- 19 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 40.0 A, 215T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
