Shop BALDOR-RELIANCE

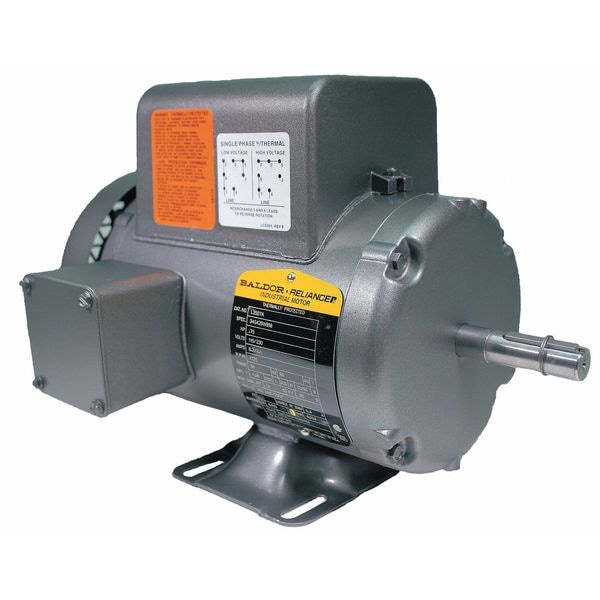

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/230V AC Voltage

  • Mfr # L3507A

  • Zoro # G8460611

product price:
$
813.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
3/4 hp
RPM Range
1,701-1,800
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
L3507A
Zoro #
G8460611
UPC #
781568100349
Country of Origin
United States
Motor Design
Capacitor-Start/Run
Item
General Purpose Motor
Phase
Single
HP
3/4 hp
RPM Range
1,701-1,800
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Voltage
115/230V AC
Frame
56
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
4.1 A
Motor Application
General Purpose
Includes
Conduit Box
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
74 %
Motor Shaft Rotation
CW/CCW
No. of Speeds
1
Motor Shaft Design
Keyed
Frame Material
Steel
Hz
60 Hz
Motor Service Factor
1.25
RPM Group
1701-1800
Standards
CSA, UR
Nameplate RPM
1,800 RPM
CC Number
CC031A
Duty
Continuous
Motor Bearings
Ball
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
NEMA Design
N
Usable @ 208V
Usable at 208V
Weight
35 lb
Inverter Rated
Not Inverter Rated
Number of Wires
7
Inverter Rating
Not Inverter Rated
Number of Speeds
1
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.25
Insulation Class
B
Efficiency Rating
High Efficiency (IE2)
NEMA Design Class
N
Product Type
General Purpose Motor
Shaft Design
Keyed
Manufacturers Warranty
2 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Application
General Purpose
Full Load Current @ 60 Hz
4.1 A

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.1 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
