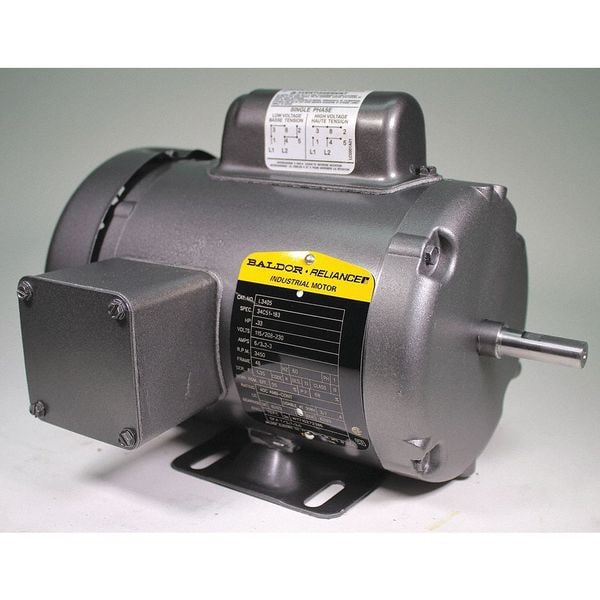

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 48 Frame
Mfr # L3405
Zoro # G7566431
product price:Â $444.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/3 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
L3405
Zoro #
G7566431
UPC #
781568100134
Country of Origin
United States
Dimensions
Manufacturers Warranty Length
2 yr
Shaft Dia.
1/2 in
Length Less Shaft
9 1/4 in
Shaft Length
1 1/2 in
Overall Length
10 3/4 in
Shaft Diameter
1/2 in
Frame Size
48
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.0 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
