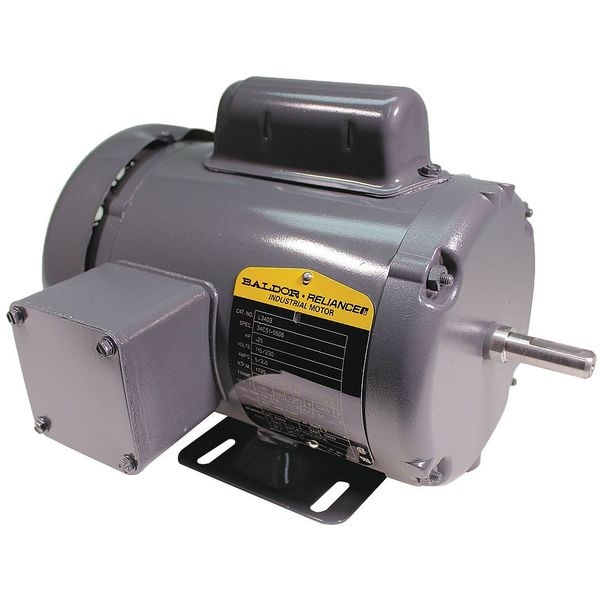

Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 48 Frame
Mfr # L3403
Zoro # G5145165
product price: $483.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/4 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
L3403
Zoro #
G5145165
UPC #
781568100097
Country of Origin
United States
Dimensions
Length Less Shaft
9 13/16 in
Shaft Dia.
1/2 in
Overall Length
10 3/4 in
Shaft Length
1 1/2 in
Manufacturers Warranty Length
2 yr
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.5 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
