Shop CENTURY

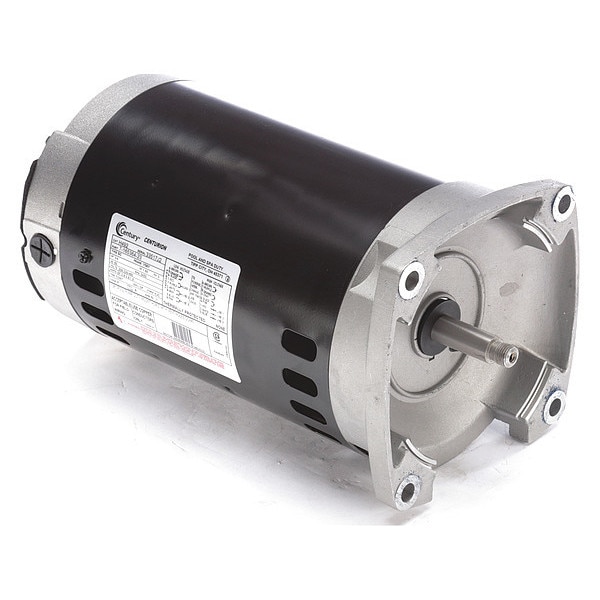

Pool Pump Motor, 3-Phase, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # H492

  • Zoro # G0944167

product price:
$
399.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.65
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H492
Zoro #
G0944167
UPC #
-
Country of Origin
Mexico
Item
Square Flange Pool Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.65
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CW/CCW
Phase
Three
Voltage
208-230/460V AC
Motor Mounting Type
Face
Full Load Amps
3.8-3.6/1.80 A
Design
Two Compartment
Shaft Material
Stainless Steel
Standards
CSA, UL
Hz
60 Hz
Shaft
Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Ins. Class
B
Max. Ambient Temp.
50 Degrees C
Motor Sub Application
Pool and Spa Pump
Motor Efficiency Group
Standard Efficient
Motor Thermal Protection
None
Motor Application
Pump
Motor Bearings
Ball
No. of Speeds
1
Weight
25 lb
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Motor Shaft Design
Threaded
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Mounting Position
Horizontal
Full Load Current @ 60 Hz
3.8-3.6/1.8 A
Insulation Class
B
Shaft Design
Threaded
Frequency
60 Hz
Application
Pump
Nameplate Service Factor @ 60 Hz
1.65
Ambient Temperature - Maximum
50 Degrees C
Product Type
Pump Motor
Sub Application
Pool and Spa Pump
Number of Wires
9
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1
Bearing Type
Ball

Description

Square Flange Pool Pump Motor, Bolt Circle Dia. 7 1/8 in, Duty Cycle Continuous, Frame 56Y, Hz 60 Hz, Full Load Amps 3.8-3.6/1.80, Height 6 1/2 in, HP 3/4, Ins. Class B, Length Less Shaft 11 7/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
