Baldor-Reliance

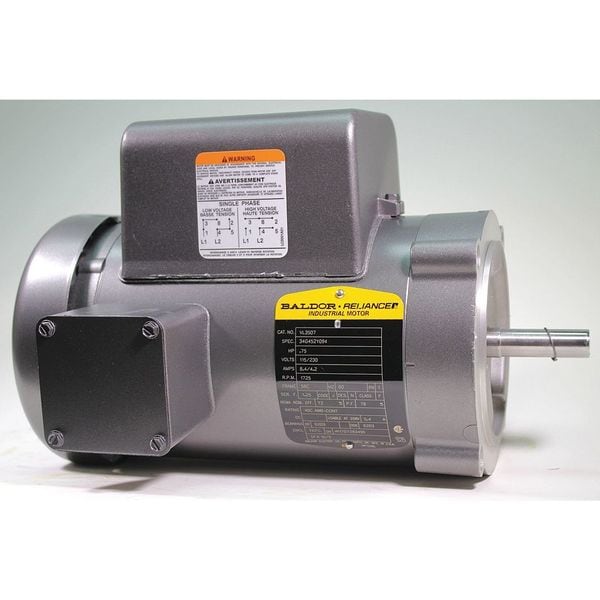

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56C Frame, 115/230V AC Voltage
Mfr # VL3507
Zoro # G7490962
product price: $668.99
/ea
Free Shipping & Returns
Key Features
- Motor Enclosure Design Totally Enclosed Fan Cooled
- Motor Mounting Type C-Face, Rigid Base
- HP 3/4 hp
- RPM Range 1,701-1,800
- Voltage 115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamProduct Information
- Brand Baldor-Reliance
- MFR # VL3507
- Zoro # G7490962
- UPC # 781568109076
- Country of Origin United States
- Category Capacitor Start AC Motors
Dimensions
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 10 9/16 in |
| Overall Length | 12 1/2 in |
| Manufacturers Warranty Length | 2 yr |
| Shaft Dia. | 5/8 in |
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
