Shop CENTURY

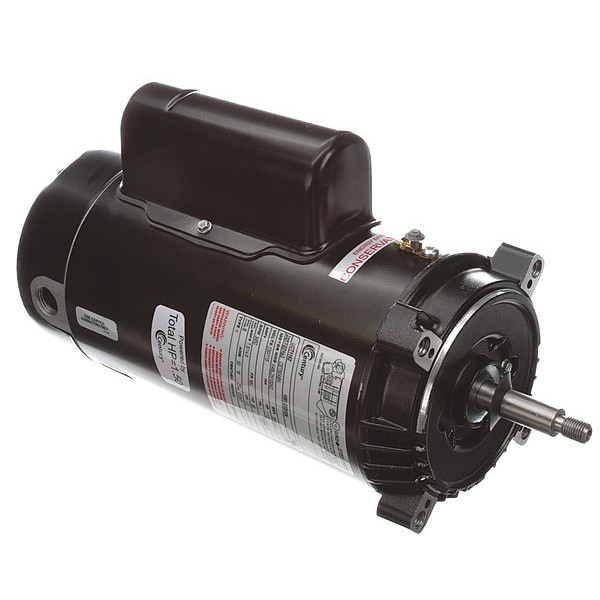

Pool Pump Motor, Capacitor-Start/Run, 1 1/2 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # UCT1152
  • Zoro # G4618625
product price:
$
462.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1 1/2
Motor Service Factor
1
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UCT1152
Zoro #
G4618625
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Height
5 5/8 in
Body Dia.
5.7 in
Length Less Shaft
12 1/8 in
Bolt Circle Dia.
5 15/16 in
Overall Length
14 11/16 in
Shaft Dia. (In.)
5/8
Frame Size
56J
Bolt Circle Diameter
5 15/16 in
Shaft Diameter
5/8 in
Body Diameter
5.7 in
Wire Rope Length
14 11/16 in
Length
14 11/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1 1/2
Motor Service Factor
1
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115V AC, 230V AC
Motor Mounting Type
Face
Full Load Amps
14.6/7.3 A
Motor Efficiency Group
Energy Efficient
Shaft
Threaded 7/16-20 UNF-2A RH
Motor Flange Material
Aluminum
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Bearings
Ball
Shaft Material
Stainless Steel
Motor Thermal Protection
Auto
Ambient Temperature
50 Degrees C
Motor Application
Pump
Hz
60 Hz
Finish
Black
Motor Sub Application
Pool and Spa Pump
Standards
CSA, UL
Ins. Class
B
Max. Ambient Temp.
50 Degrees C
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Motor Shaft Design
Threaded
Weight
27 lb
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Conduit Box Position
F3
Application
Pump
Ambient Temperature - Maximum
50 Degrees C
Motor Enclosure Type
Open Drip Proof
Number of Wires
11
Sub Application
Pool and Spa Pump
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Threaded
Frequency
60 Hz
Insulation Class
B
Full Load Current @ 60 Hz
14.6/7.3 A
Number of Speeds
1
Product Type
Pump Motor
Mounting Position
Horizontal
Bearing Type
Ball

Description

Pool and Spa Pump Motor, Body Dia. 5.7 in, Bolt Circle Dia. 5 15/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60 Hz, Full Load Amps 14.6/7.3, Height 5 5/8 in, HP 1 1/2, Ins. Class B, Length Less Shaft 12 1/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA, NY
