Shop CENTURY

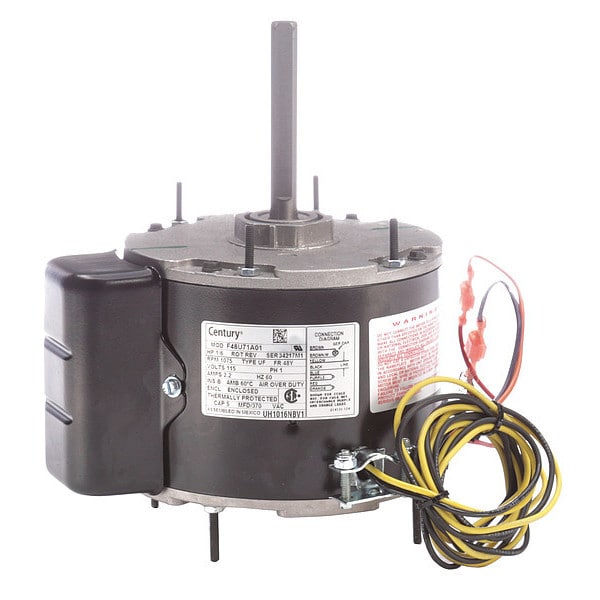

Unit Heater Motor, 1/6 hp

  • Mfr # UH1016NBV1

  • Zoro # G2732624

product price:
$
171.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/6
Nameplate RPM
1,075
Voltage
115V AC
Frame
48Y
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UH1016NBV1
Zoro #
G2732624
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 3/4 in
Overall Length
8 7/16 in
Body Dia.
5 5/8 in
Length Less Shaft
5 1/8 in
Bolt Circle Dia.
5 1/8 in
Lead Length
58 in
Stud Size
#8-32
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48Y
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
8 7/16 in
Length
8 7/16 in

Details

Item
Unit Heater Motor
Motor Design
Permanent Split Capacitor
HP
1/6
Nameplate RPM
1,075
Voltage
115V AC
Frame
48Y
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Stud
RPM Range
1,001-1,100
Motor Application
HVAC/R
Motor Efficiency Group
Energy Efficient
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Phase
Single
Hz
60 Hz
Duty
Continuous
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Service Factor
1
Includes
Extended Studs, Permanent Split Capacitor
Mounting Stud Pattern
3 5/8 in x 3 5/8 in OSE, 4 1/2 in x 2 9/16 in SE
Full Load Amps
2 A
Motor Sub Application
Unit Heater
Motor Thermal Protection
Auto
Ins. Class
B
Max. Ambient Temp.
60 Degrees C
Application
Unit Heater
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Number of Shafts
1
Stud Quantity
4
Motor Shaft Design
Flat
Mounting Holes
(4) #8-32
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Weight
12 lb
Usable @ 208V
Not Usable at 208V
Capacitor Required
Capacitor Included
Conduit Box Position
F3
Number of Speeds
1
Mounting
Stud
Ambient Temperature
60 Degrees C
Output Watts
130 W
Insulation Class
B
Bearing Type
Ball
Frame Material
Steel
Mounting Position
Horizontal
Full Load Current @ 60 Hz
2.0 A
Ambient Temperature - Maximum
60 Degrees C
Drive Type
Direct Drive
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Shaft Design
Flat
Sub Application
Unit Heater
Product Type
Unit Heater Motor
Wattage
130 W
Nameplate Service Factor @ 60 Hz
1

Description

Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115V AC, 2 A Full Load Amps, 48Y Frame, Output Watts 130 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Stud, Motor Frame Material Steel
