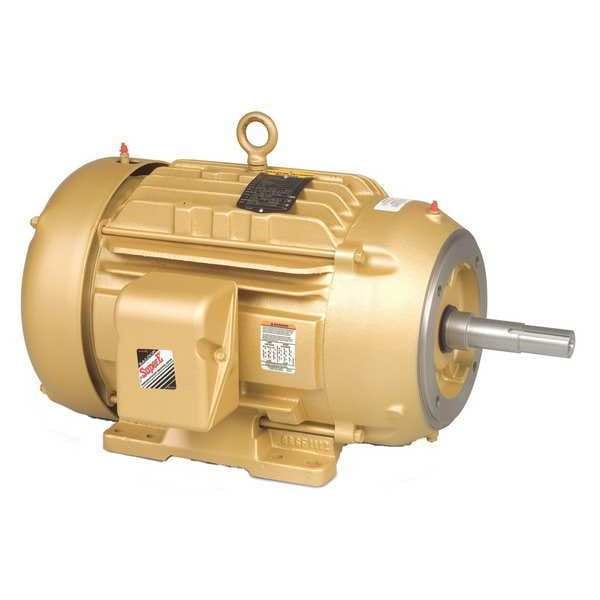

Baldor-Reliance General Purpose Motor, 230V AC/460V AC EJMM2394T - main

General Purpose Motor, 230V AC/460V AC

  • Mfr # EJMM2394T

  • Zoro # G7167441

product price: $4,051.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
HP
15
RPM Range
3,001-3,600
Nameplate RPM
3,520
Voltage
230V AC, 460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EJMM2394T
Zoro #
G7167441
UPC #
781568394786
Country of Origin
United States

Dimensions

Shaft Length
4 5/8 in
Shaft Dia.
1 1/4 in
Overall Length
25 3/8 in
Length Less Shaft
20 3/4 in

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
15
RPM Range
3,001-3,600
Nameplate RPM
3,520
Voltage
230V AC, 460V AC
Frame
254JM
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
CC Number
CC010A
Inverter Rated
Yes
Motor Shaft Rotation
CCW
Phase
Three
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Mounting Position
Horizontal
Ins. Class
F
Full Load Amps
17.5/35/38 A
Motor Thermal Protection
None
Standards
CSA EEV, NEMA Premium, UR
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Frame Material
Cast Iron
Nominal Efficiency
91 %
Motor Application
General Purpose
Motor Bearings
Ball
No. of Speeds
1
Motor Shaft Design
Keyed
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
NEMA Design
B
Part Winding Start Capable
No
Full Load Amps @ 50Hz
42.0/21.0 A
HP @ 50Hz
15 hp
Usable @ 208V
Yes
RPM @ 50Hz
3,520
Voltage @ 50Hz
190/380 V
Duty Cycle
Continuous

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 3,520, Frame 254JM, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 17.5/35/38 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, 3,001-3,600, CSA EEV, NEMA Premium, UR
