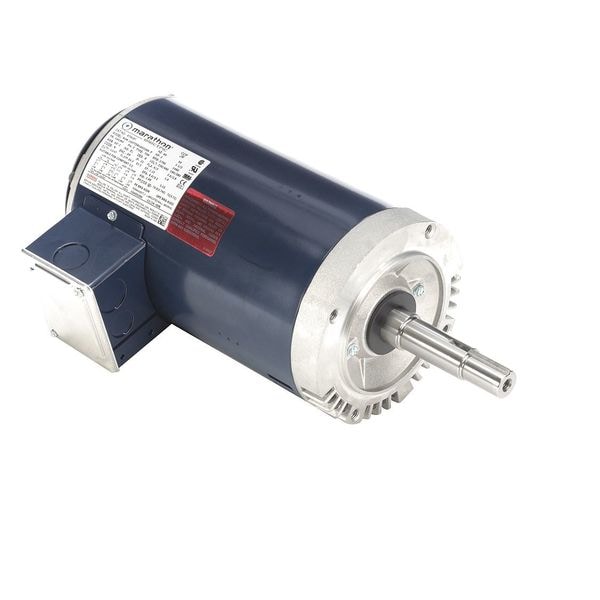

Close-Coupled Pump Motor, 2 HP, 230/460V

  • Mfr # 145TTDR16332

  • Zoro # G6421576

product price:
$
625.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
2 hp
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145TTDR16332
Zoro #
G6421576
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
15 15/16 in
Shaft Dia.
7/8 in
Shaft Length
4 1/4 in
Length Less Shaft
11 11/16 in
Bolt Circle Dia.
5 7/8 in
Body Dia.
6.5 in
Body Diameter
6.5 in
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
7/8 in
Frame Size
145JMV
Wire Rope Length
15 15/16 in
Length
15 15/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
2 hp
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
230/460V AC
Frame
145JMV
Motor Mounting Type
Face
Motor Service Factor
1.15
Hz
60 Hz
Duty
Continuous
Full Load Amps
6.0/3.0 A
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Motor Shaft Design
Keyed, Threaded
CC Number
CC003A
Motor Efficiency Group
NEMA Premium Efficient
Max. Ambient Temp.
40 Degrees C
Inverter Rated
Inverter Rated
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Steel
Phase
Three
Nominal Efficiency
87.5 %
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CE Mark, CSA Certified, UL Recognized
Motor Bearings
Ball
Motor Application
Pump
Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Drip Cover
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Duty Cycle
Continuous
No. of Speeds
1
Weight
49 lb
Conduit Box Position
F1
Motor Mounting Position
Horizontal, Vertical Shaft Down
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
Premium Efficiency (IE3)
Frequency
60 Hz
Full Load Current @ 60 Hz
6.0/3.0 A
Shaft Thread Type
JM
Constant Torque Rating
2:1 Constant Torque
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal/Vertical Shaft Down
Product Type
Pump Motor
Application
Pump
Insulation Class
F
Number of Wires
9
Motor Enclosure Type
Open Drip Proof
NEMA Design Class
B
Number of Speeds
1

Description

Close-Coupled Pump Motor, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 145JMV, Hz 60 Hz, Full Load Amps 6.0/3.0, HP 2, Includes Drip Cover, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 11 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
