Shop DAYTON

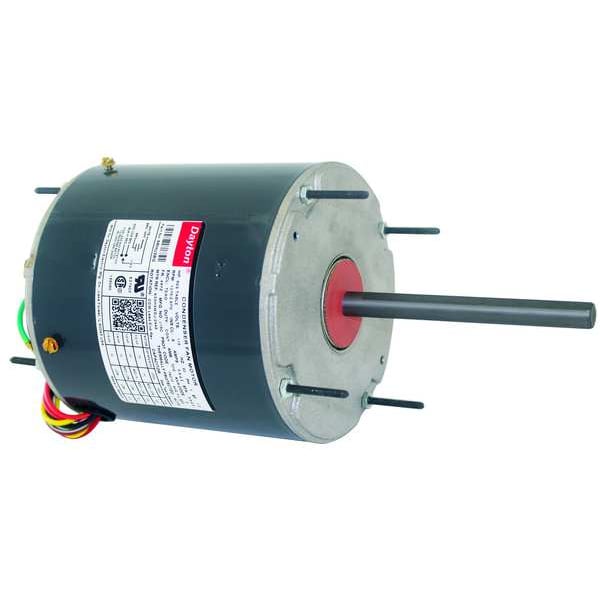

Condenser Fan Motor, 1/2 hp; 1/5 hp

  • Mfr # 5RHU2

  • Zoro # G2296262

product price:
$
238.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 to 1/5
RPM Range
1,001-1,100
No. of Speeds
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5RHU2
Zoro #
G2296262
UPC #
190735350416
Country of Origin
Multiple
Item
Condenser Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 to 1/5
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Mounting Position
All Angle
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,075
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Stud Quantity
4
Nominal Efficiency
70.6 %
Motor Bearings
Ball
Capacitor Required
Capacitor Not Included
Standards
CSA Certified (258501), UL Recognized (E37403)
Duty
Continuous
Motor Shaft Design
Double-Flat
Ins. Class
B
Application
Replaces OEM Condenser Fan Motors
Hz
60 Hz
Features
Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
Full Load Amps
5.8-2.2 A
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Service Factor
1
Duty Cycle
Continuous
Drive Type
Direct Drive
Bearing Type
Ball
Insulation Class
B
Full Load Current @ 60 Hz
5.8-2.2 A
Product Type
Condenser Fan Motor
Mounting Position
All Angle
Ambient Temperature - Maximum
70 Degrees C
Shaft Design
Double Flat
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Motor Enclosure Type
Totally Enclosed Air-Over

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 to 1/5 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 115V AC, 5.8-2.2 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 5 in
