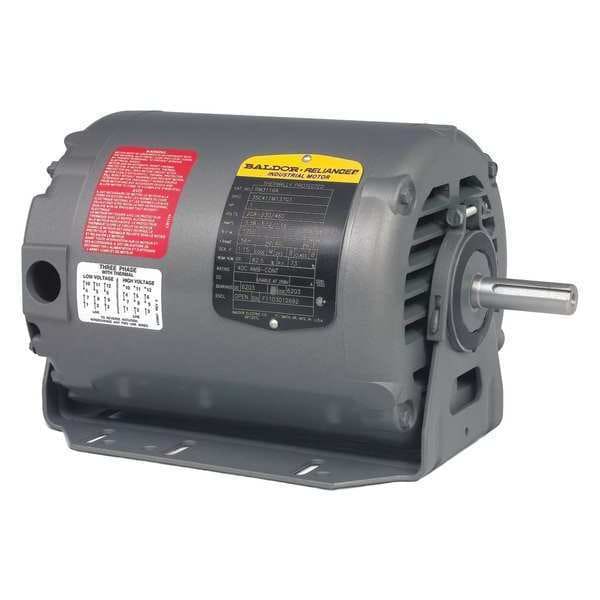

Baldor-Reliance Three-Phase AC Induction Motor, 1/2 HP, 56 Frame, 230V AC, 460V AC Voltage, 1,725 Nameplate RPM RM3108A - main

Three-Phase AC Induction Motor, 1/2 HP, 56 Frame, 230V AC, 460V AC Voltage, 1,725 Nameplate RPM

  • Mfr # RM3108A

  • Zoro # G7042345

product price:  $599.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,725
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
0.90/1.8/2.3 A
Frame
56
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RM3108A
Zoro #
G7042345
UPC #
781568120958
Country of Origin
United States

Dimensions

Length Less Shaft
9 1/16 in
Overall Length
11 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
AC Induction Motor
HP
1/2
Nameplate RPM
1,725
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
0.90/1.8/2.3 A
Frame
56
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Standard
Nominal Efficiency
72 %
Standards
CSA, RoHS Compliant, UR
CC Number
CC031A
Motor Thermal Protection
Auto
Inverter Rated
No
NEMA Design
B
Duty Cycle
Continuous
Part Winding Start Capable
Yes
Usable @ 208V
Usable at 208V
Inverter Rating
Not Inverter Rated
NEMA Design Class
B
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.25
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Full Load Current @ 60 Hz
0.90/1.8/2.3 A
Frequency
60 Hz
Nameplate RPM @ 50 Hz
2,930/2,940/2,945/2,895/2,910/2,925 RPM
Number of Speeds
1
Bearing Type
Ball
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Open Drip Proof

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,725, Frame 56, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.90/1.8/2.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, 1,701-1,800, CSA, RoHS Compliant, UR
