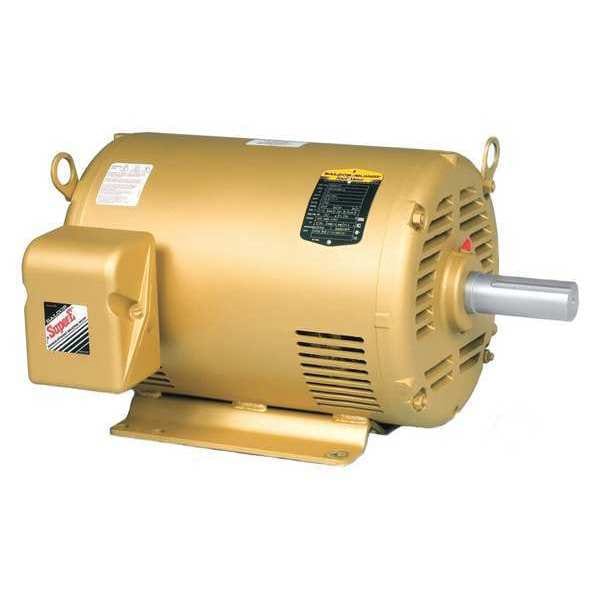

Baldor-Reliance Three-Phase AC Induction Motor, 15 HP, 254T Frame, 200V AC Voltage, 1,770 Nameplate RPM EM2513T-8 - main

Three-Phase AC Induction Motor, 15 HP, 254T Frame, 200V AC Voltage, 1,770 Nameplate RPM

  • Mfr # EM2513T-8

  • Zoro # G7146651

product price:  $3,145.99
/ea
Additional $185.00 delivery surcharge applies per item.
See details

Key Features

HP
15
Nameplate RPM
1,770
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
41.0/4.0 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EM2513T-8
Zoro #
G7146651
UPC #
781568119082
Country of Origin
United States

Dimensions

Length Less Shaft
19 3/16 in
Overall Length
23 3/16 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Frame Size
254T
Shaft Diameter
1 5/8 in

Details

Item
AC Induction Motor
HP
15
Nameplate RPM
1,770
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
41.0/4.0 A
Frame
254T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-208V AC, 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
93 %
Standards
CSA EEV, NEMA Premium, UR
CC Number
CC010A
NEMA Design
A
Motor Thermal Protection
None
Inverter Rated
Yes
Usable @ 208V
Usable at 208V
Part Winding Start Capable
No
Duty Cycle
Continuous
Usable @ 200V
Usable at 200V
Full Load Current @ 60 Hz
41.0/4.0 A
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
NEMA Design Class
A
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Bearing Type
Ball
Frequency
60 Hz
Nameplate RPM @ 50 Hz
985/990/980/985 RPM
Number of Speeds
1
Inverter Rating
Inverter Rated
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Insulation Class
F

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 1,770, Frame 254T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 41.0/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, 1,701-1,800, CSA EEV, NEMA Premium, UR
