Shop BALDOR-RELIANCE

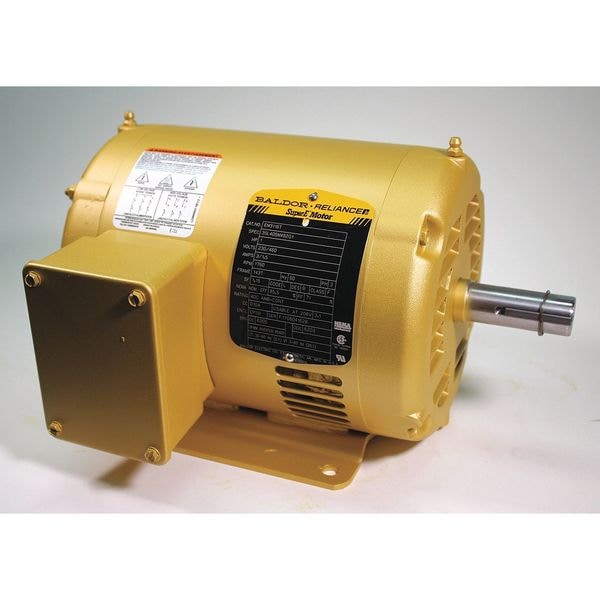

Three-Phase General Purpose Motor, 1 HP, 143T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM

  • Mfr # EM3116T

  • Zoro # G8522805

product price:
$
760.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3/1.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3116T
Zoro #
G8522805
UPC #
781568104125
Country of Origin
United States

Dimensions

Length Less Shaft
8 7/8 in
Overall Length
11 1/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
7/8 in
Frame Size
143T
Wire Rope Length
11 1/8 in
Length
11 1/8 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3/1.5 A
Frame
143T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
38 lb
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
NEMA Premium Efficiency
Full Load Current @ 60 Hz
3/1.5 A
Manufacturers Warranty
3 yr
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Shaft Design
Keyed
Product Type
General Purpose Motor
Motor Enclosure Type
Open Drip Proof
Application
General Purpose
NEMA Design Class
B
Inverter Rating
Inverter Rated
Number of Speeds
1
Mounting Position
All Angle
Nameplate RPM @ 50 Hz
2,925/2,935/2,940/2,895/2,905/2,915 RPM
Bearing Type
Ball
Insulation Class
F

Description

Here is the revised description:

The BALDOR-RELIANCE - EM3116T is a 3-phase AC general purpose motor, designed for power transmission and pneumatics applications in industrial and commercial settings. This versatile motor converts electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3116T General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA classifies and tracks this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: The motor is designed for a continuous duty cycle, which can be utilized in various industrial applications.
  • Frame: The 143T frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility.
  • Full Load Amps: Draws a maximum current of 3/1.5 A when operating at full capacity which is crucial for determining power supply requirements.
  • NEMA Premium(R) Rated: Acknowledged as meeting certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Inverter Rated: Suitable for use with a variable frequency drive, which could enable more control over speed and torque depending on the application.
