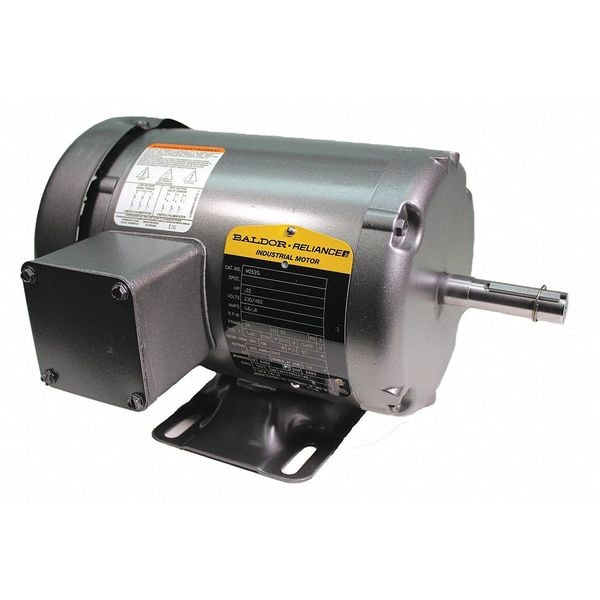

Baldor-Reliance Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 230/460V AC Voltage, 1,140 Nameplate RPM M3535 - main

Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 230/460V AC Voltage, 1,140 Nameplate RPM

  • Mfr # M3535

  • Zoro # G7913647

product price:  $703.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,140
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.8/0.9 A
Frame
56
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
M3535
Zoro #
G7913647
UPC #
781568101858
Country of Origin
United States

Dimensions

Length Less Shaft
9 1/2 in
Overall Length
11 3/8 in
Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Manufacturers Warranty Length
2 yr
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
1,140
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.8/0.9 A
Frame
56
Motor Bearings
Ball
Motor Service Factor
1.35
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
70 %
Standards
CSA, UR
CC Number
CC031A
Inverter Rated
No
Footnotes
30
Motor Thermal Protection
None
Includes
Gasketed Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
22 lb
Usable @ 208V
Usable at 208V
NEMA Design
B
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Efficiency Rating
NEMA Premium Efficiency
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
All Angle
Application
General Purpose
Bearing Type
Ball
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
B
Frame Material
Steel
Frequency
60 Hz
NEMA Design Class
B
Nameplate RPM @ 50 Hz
2,950/2,955/2,935/2,940/2,945 RPM
Manufacturers Warranty
2 yr
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.35
Full Load Current @ 60 Hz
1.8/0.9 A
Shaft Design
Keyed
Inverter Rating
Not Inverter Rated

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,140, Frame 56, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.8/0.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 70 Percent, Continuous Duty, 1,101-1,200, CSA, UR
