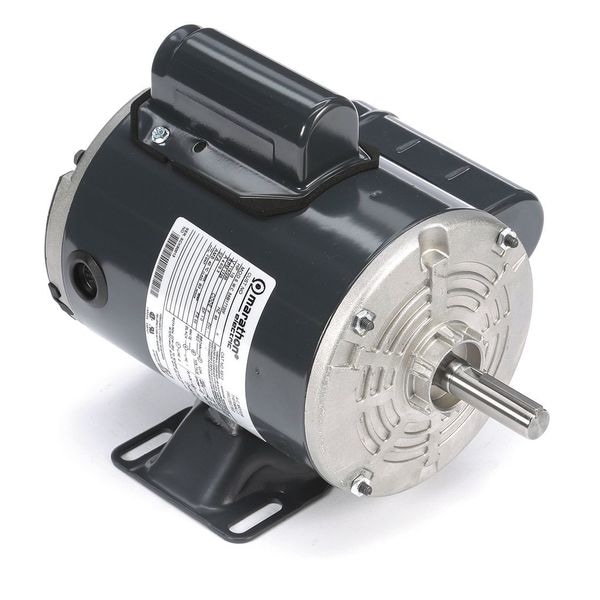

Capacitor-Start/Run Belt Drive Motor, 1/2 HP, 56 Frame, 115/230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 056B17T20

  • Zoro # G5716417

product price:  $314.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/2
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056B17T20
Zoro #
G5716417
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
10 1/2 in
Body Dia.
5 11/16 in
Shaft Length
2 in
Length Less Shaft
8 1/2 in
Frame Size
56
Shaft Diameter
5/8 in
Body Diameter
5.7 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/2
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
56
Motor Mounting Type
Rigid Base
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Frame Material
Steel
Standards
CSA (LR2025), UL (E6312)
Nominal Efficiency
78.7 %
Full Load Amps
4.6/2.3 A
Hz
60 Hz
Duty
Continuous
Ins. Class
B
Frame Material
Steel
Max. Ambient Temp.
104 Degrees F
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Usable @ 208V
No
Usable @ 200V
No
Weight
22 lb
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Application
Fan/Blower
Number of Speeds
1
Product Type
Fan and Blower Motor
Mounting Position
Horizontal
Full Load Current @ 60 Hz
4.6/2.3 A
Insulation Class
B
Drive Type
Belt Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Frequency
60 Hz
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 4.6/2.3 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
