  11. Motor, Sp Ph, 1/3 HP, 1725,115/208-230V, 48Y
Century

Motor, Sp Ph, 1/3 HP, 1725,115/208-230V, 48Y

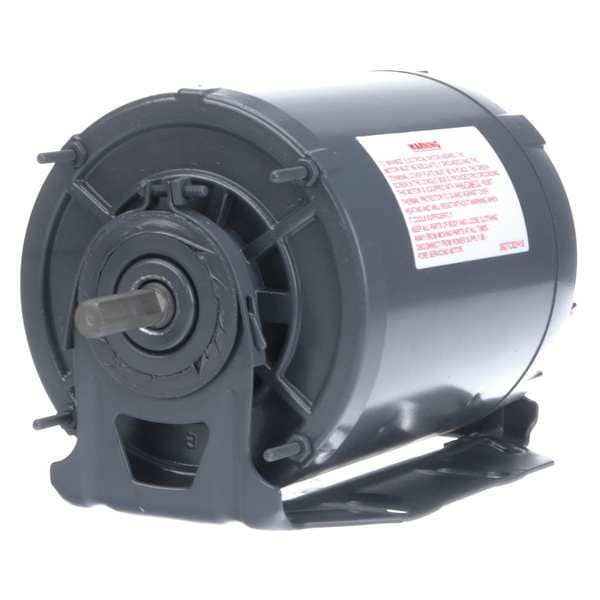

Century Motor, Sp Ph, 1/3 HP, 1725,115/208-230V, 48Y ARB2034L6
Tap to zoom
Hover or click to zoom
$317.46
  • Length Less Shaft: 8 1/4 in
  • Phase: Single
  • Duty: Continuous
See full product details
This item ships free.
Total: $317.46

Century #ARB2034L6 Specifications

  • Length Less Shaft: 8 1/4 in
  • Phase: Single
  • Duty: Continuous
  • Motor Mounting Position: Horizontal
  • Motor Bearings: Ball
  • Mounting Stud Location: Shaft End
  • Motor Mounting Type: Cradle Base
  • Voltage: 115/208-230V AC
  • Application: Blowers, Fans and Air Circulators
  • RPM Range: 1,701-1,800
  • Stud Size: #8-32
  • Motor Shaft Design: Flat
  • Mounting Stud Length: 3/4 in
  • Ring to Ring Center: 7 3/4 in
  • Body Dia.: 5 13/16 in
  • Item: Direct Drive Blower Motor
  • Resilient Ring Dia.: 2 1/2 in
  • Shaft Dia.: 1/2 in
  • Capacitor Required: No
  • Manufacturers Warranty Length: 1 yr
  • Motor Application: HVAC/R
  • Ins. Class: B
  • Motor Shaft Rotation: CW/CCW
  • Shaft Length: 1 1/2 in
  • Overall Length: 9 13/16 in
  • No. of Speeds: 1
  • Frame: 48
  • Hz: 60 Hz
  • Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
  • Motor Design: Split-Phase
  • Motor Thermal Protection: Auto
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Motor Service Factor: 1
  • Bolt Circle Dia.: 5 3/16 in
  • HP: 1/3
  • Max. Ambient Temp.: 40 Degrees C
  • Nameplate RPM: 1,725
  • Standards: CSA Certified, UL Recognized
  • Full Load Amps: 4.9/2.3/2.5
  • Motor Sub Application: Direct Drive Fan/Blower
  • Stud Quantity: 4
  • Mounting Holes: 4
  • Motor Frame Material: Steel
  • Duty Cycle: Continuous
  • Includes: Resilient Base
  • Usable @ 208V: Yes
  • Usable @ 200V: No
  • Number of Shafts: 1
  • Weight: 18 lb
  • Country of Origin (subject to change): Mexico

Description

Direct Drive Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 2, Voltage 115/208-230V AC, Full Load Amps 4.9/2.3/2.5, 48 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
