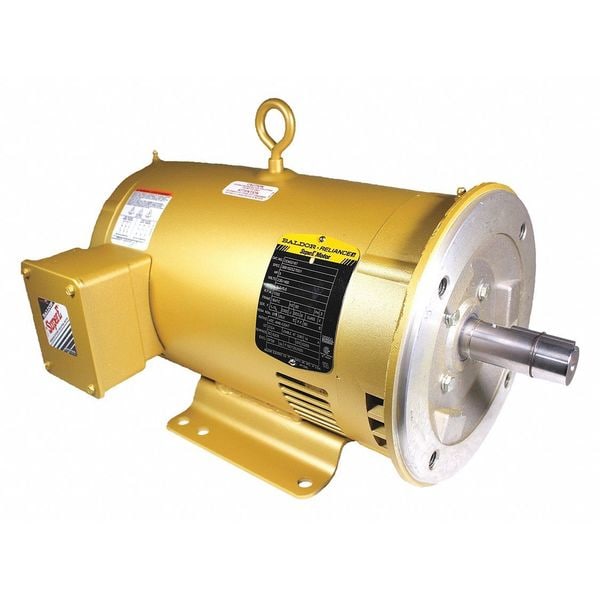

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage
Mfr # CEM3218T
Zoro # G8333096
product price: $1,296.99
/ea
Free Shipping & Returns
Key Features
HP
5
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
13.2/6.6 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CEM3218T
Zoro #
G8333096
UPC #
781568541975
Country of Origin
United States
Dimensions
Length Less Shaft
13 3/4 in
Overall Length
16 1/2 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1750 rpm, Frame 184TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.2/6.6 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
