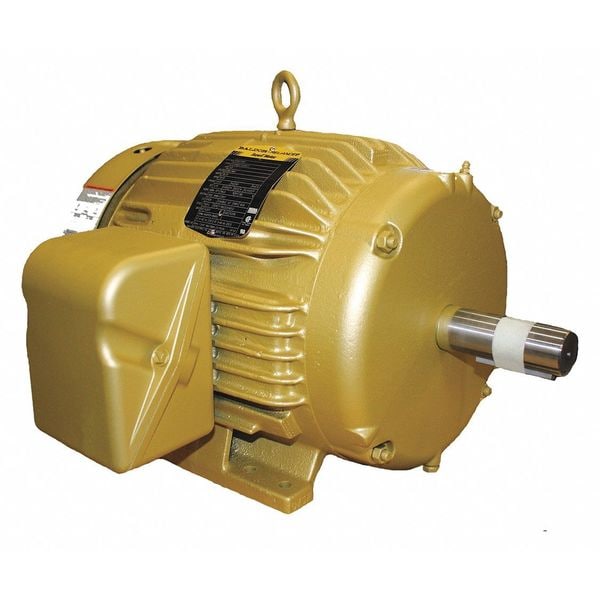

Baldor-Reliance Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 208-230/460V AC Voltage EM3769T - main

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 208-230/460V AC Voltage

  • Mfr # EM3769T

  • Zoro # G9818882

product price:  $2,045.99
/ea
Additional $170.00 delivery surcharge applies per item.
See details

Key Features

HP
7 1/2
Nameplate RPM
3510 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.0/9.0 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EM3769T
Zoro #
G9818882
UPC #
781568102688
Country of Origin
United States

Dimensions

Length Less Shaft
15 1/16 in
Overall Length
18 7/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
3 yr
Frame Size
213T
Shaft Diameter
1 3/8 in

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
3510 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.0/9.0 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Weight
165 lb
NEMA Design Class
B
Inverter Rating
Inverter Rated
Bearing Type
Ball
Insulation Class
F
Frequency
60 Hz
Full Load Current @ 60 Hz
18.0/9.0 A
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
3 yr
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
1,470 RPM
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Mounting Position
All Angle
Product Type
General Purpose Motor
Number of Speeds
1

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 3510 rpm, Frame 213T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.0/9.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600
