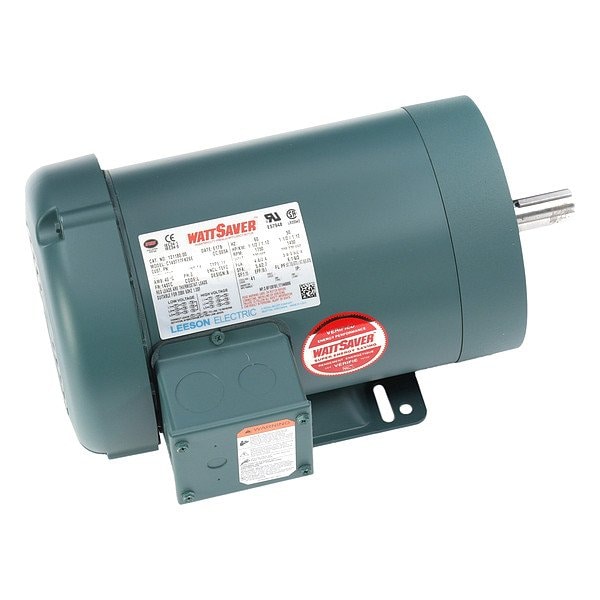

Three-Phase General Purpose Motor, 1 1/2 HP, 145TC Frame, 230/460V Voltage, 1,750 Nameplate RPM
Mfr # 121180.00
Zoro # G611929377
product price:Â $801.99
/ea
Free Shipping & Returns
Key Features
HP
1 1/2
Nameplate RPM
1,750
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.4 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
121180.00
Zoro #
G611929377
UPC #
691720016770
Country of Origin
United States
Dimensions
Length Less Shaft
11 3/16 in
Overall Length
13 7/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Bolt Circle Dia.
Not available
Manufacturers Warranty Length
Not available
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1,750, Frame 145TC, Voltage 230/460V, 60/50 Hz Hz, Three Phase, Full Load Amps 2.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, 1750, CE, CSA Certified, UL Listed
