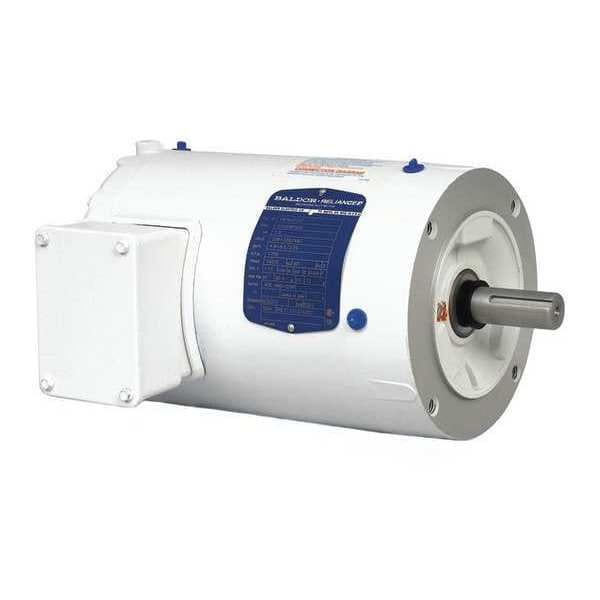

Three-Phase Washdown Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1,765 RPM Nameplate RPM
Mfr # VWDM3542
Zoro # G8052707
product price:Â $921.99
/ea
Free Shipping & Returns
Key Features
HP
3/4
Nameplate RPM
1,765 RPM
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.1 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VWDM3542
Zoro #
G8052707
UPC #
781568108772
Country of Origin
United States
Dimensions
Length Less Shaft
9 3/16 in
Overall Length
11 1/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
6.6 in
Bolt Circle Dia.
5 7/8 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.1 A, 56C Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Vertical
