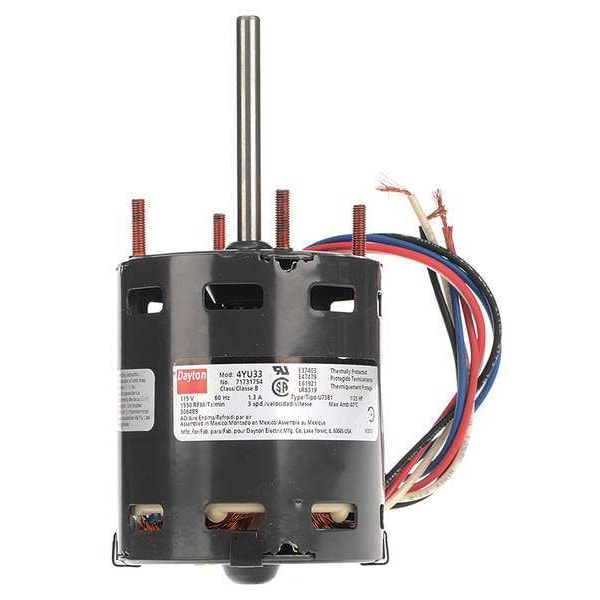

Motor, Sh Pole, 1/25 HP, 1550, 115V, 3.3, Open

DAYTON| Zoro #: G0316504| Mfr #: 4YU33

$79.39 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0316504 Mfr #: 4YU33
Voltage: 115Motor Shaft Design: Flat
Hz: 60Motor Service Factor: 1.00
Motor Shaft Rotation: CCWSEPhase: 1
Motor Mounting Type: StudCapacitor Required: No
Max. Ambient Temp.: 40 Degrees CMotor Sub Application: Direct Drive Fan/Blower
Motor Application: HVAC/RMotor Enclosure Design: Open Air-Over
Item: Direct Drive Blower MotorMotor Mounting Position: All Angle
Motor Thermal Protection: AutoMotor Design: Shaded Pole
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Duty: Continuous
Replacement For: Mfr. No. 4HZ33, 4HZ35, 4YC65Application: Replacement Motor for Mfr. No. 4HZ33, 4HZ35, 4YC65
Shaft Dia.: 5/16"Body Dia.: 3.3"
Frame: 3.3Standards: CSA Certified Motor
Shaft Length: 3"Mounting Stud Pattern: 2" x 2"
Mounting Stud Location: Shaft EndNameplate RPM: 1550/1300/1050
Ins. Class: BHP: 1/25
Motor Bearings: SleeveFull Load Amps: 1.6
No. of Speeds: 3Length Less Shaft: 3-3/4"
Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Shaded Pole Motor Type, Open Air-Over Enclosure, 1/25 HP, 1/77 HP @ Lower RPM, 1550/1300/1050 Nameplate RPM, Voltage 115, 1.6 Full Load Amps, 60 Hz, 1 Phase, 3.3 Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CCWSE, Body Dia. 3.3 In., Shaft Dia. 5/16 In., Shaft Length 3 In.
