  11. 2" FNPT Polypropylene Ball Valve 3-Way
Shop All Ball Valves
Banjo

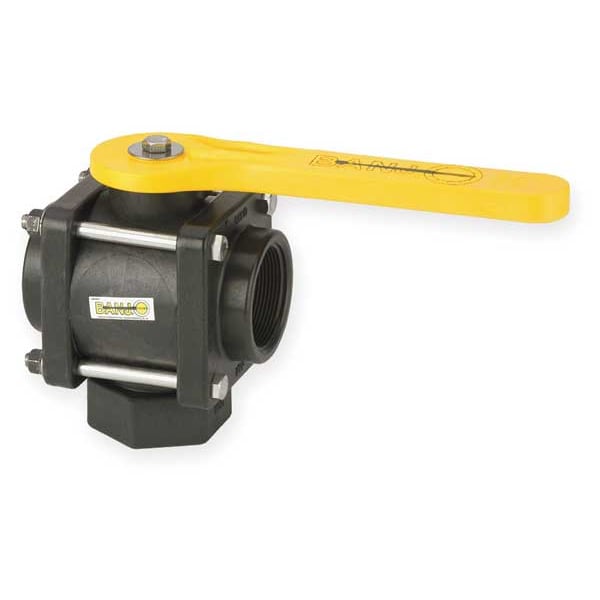

2" FNPT Polypropylene Ball Valve 3-Way

original price: $89.19
9% off
new price: $80.29
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 2"
  • Body Material Polypropylene
  • Body Style Inline Single Union
  • Temp. Range -20 Degrees to 150 Degrees F
  • Body Seal Material EPDM
See all product information

Product Information

  • Brand Banjo
  • MFR # V200BL
  • Zoro # G2756677
  • UPC #
    791206022094
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 2"
Overall Length 4.16 in
Handle Length 9.25 in
Handle Height 3.46 in
Outlet Connection Size - Side 2 2 in
Nominal Valve Size 2 in
Outlet Connection Size - Side 1 2 in
Inlet Connection Size 2 in

Details

Body Material Polypropylene
Body Style Inline Single Union
Temp. Range -20 Degrees to 150 Degrees F
Body Seal Material EPDM
Port Full
Max. Pressure 100 psi CWP
Seat Material PTFE
Item Ball Valve
Stem Material Polypropylene
Ball Material Polypropylene
Connection Type FNPT x FNPT
Ball Valve Product Group Manual
Stem Type Self-Lubricating
Handle Type Lever
Valve Structure 1-Piece
Handle Material Polypropylene
Ball Valve Basic Body Material Plastic
Seal Material FKM
Type Three Piece, Three Way
Connection FNPT
Sub-Category Synthetic Ball Valves
Material of Construction Polypropylene
Vacuum Service Rating Not Available
Inlet Connection Entry Bottom
3-A Standard Compliance Not Rated
Maximum Pressure - Combustible Gas Not Rated
Maximum Pressure - Operating 200 psi
Outlet Connection Gender - Side 1 Female
Flow Pattern L Flow
Valve Construction Three-Piece
Operating Temperature - Minimum -20 Degrees F
Maximum Pressure - Steam Not Rated
Inlet Connection Type NPT
Outlet Connection Gender - Side 2 Female
Coefficient of Volume (Cv) Not Available
Valve Ways 3-Way
Operating Temperature - Maximum 150 Degrees F
Inlet Connection Gender Female
Ball Port Style Full Port
Handle - Locking Non-Locking
Outlet Connection Type - Side 2 NPT
Outlet Connection Type - Side 1 NPT
For Media Water
Color - Valve Handle Yellow
Vented Ball Valve Non-Vented

Description

Manual Three-Way Ball Valve, Body Material Polypropylene, Valve Construction Three-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 2 in, Inlet Connection Size 2 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Bottom, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 2 in, Outlet Connection Gender - Side 1 Female
