Shop All Ball Valves
Banjo

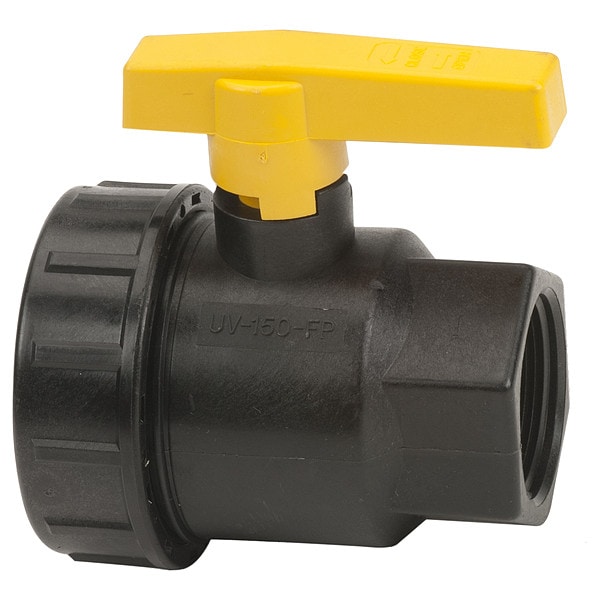

Manual 2-Way Ball Valve, NPT, Polypro

product price: $37.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1 1/2 in
  • Body Material Polypropylene
  • Body Style Single Union
  • Handle Type Lever
  • Stem Type Not Available
See all product information

Product Information

  • Brand Banjo
  • MFR # UV150FP
  • Zoro # G508447007
  • UPC #
    0791206013245
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 1 1/2 in
Overall Length 4.72 in
Nominal Valve Size 1 1/2 in
Handle Length 2.66 in
Connection Size - Side 2 1 1/2 in
Connection Size - Side 1 1 1/2 in
Handle Height 1.47 in

Details

Body Material Polypropylene
Body Style Single Union
Handle Type Lever
Stem Type Not Available
Ball Material Polypropylene
Body Seal Material PTFE
Handle Material Polypropylene
Seat Material PTFE
Port Full
Item Manual Two-Way Ball Valve
Seal Material EPDM
Max. Pressure 200 psi
Stem Material Polypropylene
Features Double O-Rings in Stem Area for Extra Sealing Protection, EPDM O-Rings to Handle Most Fertilizers and Many Chemicals, Interlocking Body and End Plate to Allow Easy Thread Connection when Installing Valves
Operating Temperature - Maximum 150 Degrees F
Operating Temperature - Minimum 0 Degrees F
Ball Port Style Full Port
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Non-Locking
For Media Corrosive Chemicals, Water
Coefficient of Volume (Cv) Not Available
Connection Type - Side 2 NPT
Valve Construction Three-Piece
Connection Type - Side 1 NPT
Valve Body Style Straight
Valve Ways 2-Way
Vacuum Service Rating Not Available
Maximum Pressure - Operating 200 psi
Connection Gender - Side 2 Female
Connection Gender - Side 1 Female
3-A Standard Compliance Not Rated
Vented Ball Valve Non-Vented
Color - Valve Handle Yellow

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port
