  11. Manual 2-Way Ball Valve, Buttress, Polypro
Shop All Ball Valves
Banjo

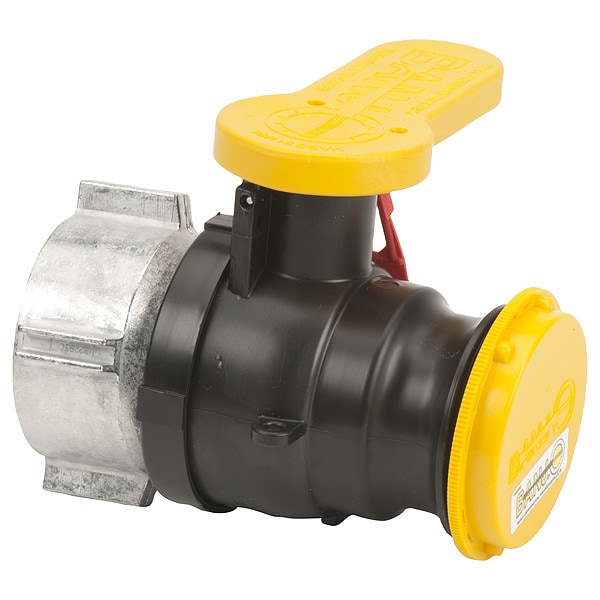

Manual 2-Way Ball Valve, Buttress, Polypro

product price: $57.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 2 in
  • Body Material Polypropylene
  • Ball Material Polypropylene
  • Overall Length 5.44 in
  • Max. Pressure 20 psi
See all product information

Product Information

Dimensions

Pipe Size 2 in
Overall Length 5.44 in
Connection Size - Side 1 2 in
Connection Size - Side 2 2 in
Nominal Valve Size 2 in
Handle Length 3.63 in
Handle Height 2.78 in

Details

Body Material Polypropylene
Ball Material Polypropylene
Max. Pressure 20 psi
Item Manual Two-Way Ball Valve
Handle Type Lever
Stem Type Not Available
Handle Material Polypropylene
Features EPDM Collar Gaskets, Lightweight, Zinc Alloy Collar
Seal Material EPDM
Seat Material PTFE
Stem Material Polypropylene
Body Seal Material PTFE
Handle - Locking Non-Locking
Color - Valve Handle Yellow
Ball Port Style Standard Port
Valve Body Style Straight
Maximum Pressure - Combustible Gas Not Rated
Operating Temperature - Minimum 0 Degrees F
For Media Corrosive Chemicals, Water
Valve Ways 2-Way
Connection Gender - Side 1 Female
Operating Temperature - Maximum 150 Degrees F
Connection Gender - Side 2 Male
3-A Standard Compliance Not Rated
Coefficient of Volume (Cv) Not Available
Vacuum Service Rating Not Available
Maximum Pressure - Operating 20 psi
Valve Construction One-Piece
Connection Type - Side 1 Buttress
Connection Type - Side 2 Camlock
Vented Ball Valve Non-Vented

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction One-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 20 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Standard Port
