  11. Manual 2-Way Ball Valve, NPT, Polypro

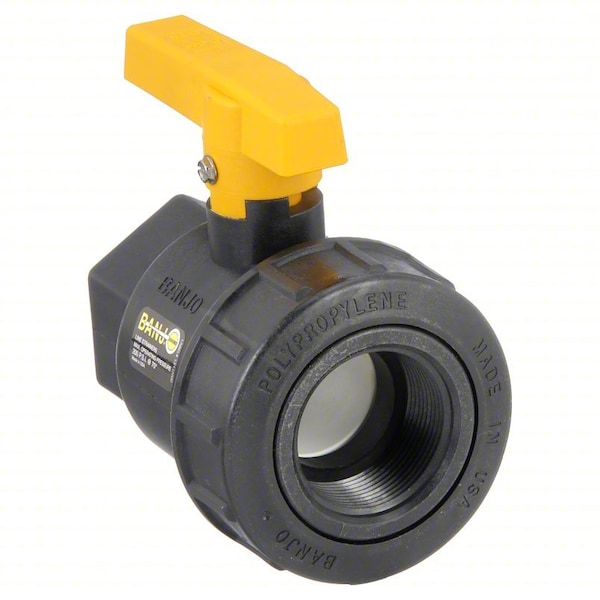

Banjo Manual 2-Way Ball Valve, NPT, Polypro UV150FPV - main

Manual 2-Way Ball Valve, NPT, Polypro

  • Mfr # UV150FPV

  • Zoro # G208447048

product price: $46.89
/ea

Key Features

Ball Material
Polypropylene
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UV150FPV
Zoro #
G208447048
UPC #
0791206013252
Country of Origin
United States

Dimensions

Pipe Size
1 1/2 in
Overall Length
4.78 in
Nominal Valve Size
1 1/2 in
Connection Size - Side 2
1 1/2 in
Connection Size - Side 1
1 1/2 in

Details

Ball Material
Polypropylene
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Corrosive Chemicals, Water
Connection Type
NPT x NPT
Item
Manual Two-Way Ball Valve
Seat Material
PTFE
Max. Pressure
100 PSI
Seal Material
FKM
Features
Double O-Rings in Stem Area for Extra Sealing Protection, EPDM O-Rings to Handle Most Fertilizers and Many Chemicals, Interlocking Body and End Plate to Allow Easy Thread Connection when Installing Valves
Handle Type
Lever
Stem Type
Not Available
Body Material
Polypropylene
Stem Material
Polypropylene
Handle Material
Polypropylene
Vented Ball Valve
Non-Vented
Operating Temperature - Maximum
150 Degrees F
Handle - Locking
Non-Locking
Connection Gender - Side 1
Female
Connection Gender - Side 2
Female
Color - Valve Handle
Yellow
Operating Temperature - Minimum
0 Degrees F
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
Not Available
Vacuum Service Rating
Not Available
Maximum Pressure - Steam
Not Rated
Maximum Pressure - Combustible Gas
Not Rated
Color - Valve Body
Black & Yellow

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 100 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port
