  11. Manual 2-Way Ball Valve, NPT, Polypro
Shop All Ball Valves
Banjo

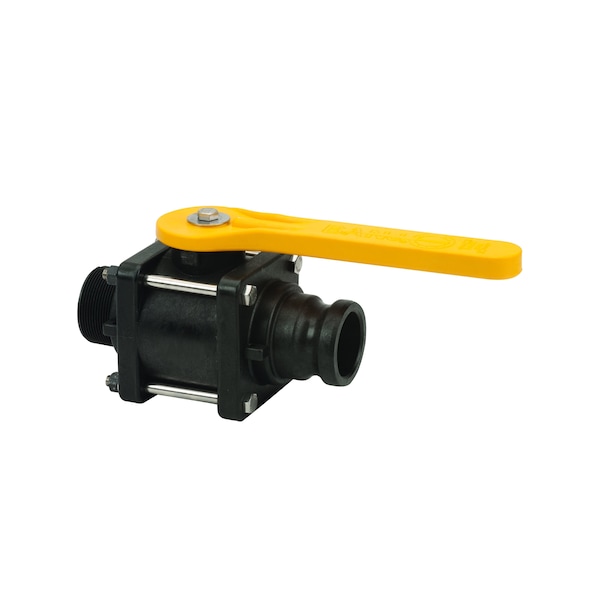

Manual 2-Way Ball Valve, NPT, Polypro

product price: $68.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 2 in
  • Body Material Polypropylene
  • Body Seal Material FKM
  • Connection Type MNPT x Male
  • Max. Pressure 150 psi
See all product information

Product Information

  • Brand Banjo
  • MFR # VFMT204FP
  • Zoro # G808446618
  • UPC #
    0791206015829
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 2 in
Overall Length 8.22 in
Connection Size - Side 1 2 in
Connection Size - Side 2 2 in
Handle Length 9.25 in
Nominal Valve Size 2 in

Details

Body Material Polypropylene
Body Seal Material FKM
Connection Type MNPT x Male
Max. Pressure 150 psi
Features Ball is Diamond Turned, after Molding, to Make it Spherically Perfect, which Provides Precise Contact Between Ball and Seats, Stainless Steel Bolts, Valve Opens and Closes with Very Little Pressure on the Handle
Stem Material Polypropylene
Item Manual Two-Way Ball Valve
Seal Material FKM
Handle Type Lever
Stem Type Self-Lubricating
Handle Material Polypropylene
Port Full
Seat Material PTFE
Ball Material Polypropylene
Valve Ways 2-Way
Connection Type - Side 1 NPT
Color - Valve Handle Yellow
Ball Port Style Full Port
Connection Gender - Side 1 Male
Valve Construction Three-Piece
Coefficient of Volume (Cv) Not Available
3-A Standard Compliance Not Rated
Operating Temperature - Maximum 150 Degrees F
Maximum Pressure - Operating 150 psi
For Media Corrosive Chemicals, Water
Connection Type - Side 2 Camlock
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Non-Locking
Vented Ball Valve Non-Vented
Vacuum Service Rating Not Available
Valve Body Style Straight
Operating Temperature - Minimum 0 Degrees F
Connection Gender - Side 2 Male

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port
