Shop LITTLE GIANT PUMP

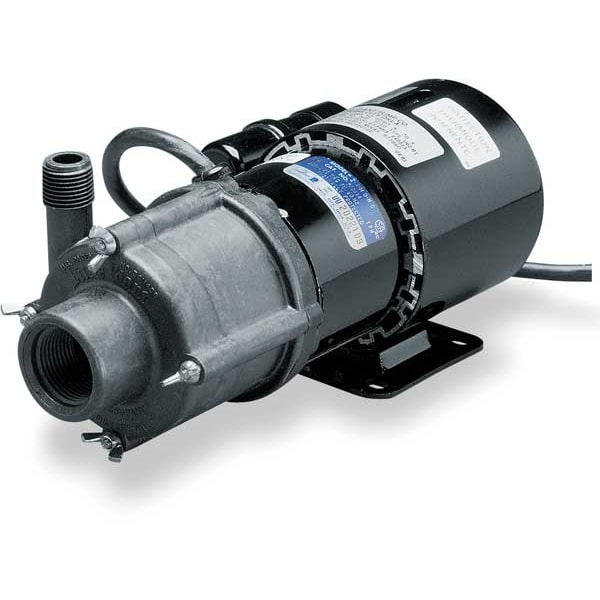

1/25 HP PPS Magnetic Drive Pump 115V 1/2" FPT

  • Mfr # 581604

  • Zoro # G1927922

product price:
$
376.99
/ea
Free Shipping & Returns

Key Features

HP
1/25 hp
Voltage
115
Inlet
1/2 in FPT
Outlet
1/2 in MPT
Max. Head
16.3 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
581604
Zoro #
G1927922
UPC #
010121819368
Country of Origin
Mexico

Dimensions

Length
8.9 in
Width
4 in
Cord Length
6 ft
Height
5 in
Overall Width
4 in
Overall Height
5 in
Overall Length
8.9 in
Discharge Pipe Size
1/2 in
Manufacturers Warranty Length
1 yr
Intake Pipe Size
1/2 in
Motor Frame Size
3.3
Impeller Diameter
1 121/200 in
Discharge Diameter
1/2 in
Inlet Diameter
1/2 in
Wire Rope Length
8.9 in

Details

Item
Magnetic Drive Pump
HP
1/25 hp
Voltage
115
Inlet
1/2 in FPT
Outlet
1/2 in MPT
Max. Head
16.3 ft
Housing Material
Glass-Filled Polyphenylene
Temp. @ 0 psig
180 Degrees F
Impeller Material
Carbon/Polyphenylene
Design
Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Application
For Highly Corrosive Chemicals, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
Bearing Type
Thrust
GPM of Water @ 3 Ft. of Head
9.1 gpm
Full Load Amps
1.3 A
Mounting
Horizontal
GPM of Water @ 9 Ft. of Head
6.5 gpm
Max. Specific Gravity
1.1
Temp. @ 20 psig
145 Degrees F
Max. Viscosity
100 SSU
Motor Enclosure
Totally Enclosed Fan Cooled
Temp. @ 30 psig
135 Degrees F
Series
MD-HC
Temp. @ 10 psig
165 Degrees F
Gasket Material
FKM
Cord Type
3-conductor SJO
Motor Type
Shaded Pole
GPM of Water @ 15 Ft. of Head
2.5 gpm
GPM of Water @ 6 Ft. of Head
8.2 gpm
Motor Mounting Type
Horizontal
Intake Pipe Type
FNPT
Phase
Single
Media Temperature (Maximum)
200 Degrees F
Full Load Current
1.3 A
Discharge Pipe Type
NPT
Flow Rate @ 3 ft of Head (Maximum)
9.2 gpm
Flow Rate @ 6 ft of Head (Maximum)
8.1 gpm
Nameplate Voltage
115V AC
Viscosity (Maximum)
100 SUS
Feet of Head (Maximum)
16.3 ft
Horsepower (Maximum)
1/25 hp
Operating Pressure (Maximum)
7.05 psi
Frequency
60 Hz
Specific Gravity (Maximum)
1.1
Flow Rate @ 15 ft of Head (Maximum)
2.6 gpm
Flow Rate @ 9 ft of Head (Maximum)
6.5 gpm
Ambient Temperature - Maximum
77 Degrees F
Pump Mounting Style
Base-Mounted
Priming
Manual
Case Pressure - Maximum
7.1 psi
Shaft Seal Type
Sealless
Flow Rate (Maximum)
9.8 gpm
Pump Design
End Suction
Chemical Compatibility
Mounting Orientation
Horizontal
Ambient Temperature - Minimum
32 Degrees F
Best Efficiency Head
10 ft
Pumping Application
Chemical Transfer
Shut Off Pressure - Maximum
7.1 psi
Hazardous Location Class
Not Rated
Inlet Standard
FNPT
Number of Stages
1
Best Efficiency Flow
6 gpm
Pump Drive Configuration
Close-Coupled
Media Temperature - Maximum
200 Degrees F
Drive Coupling Type
Magnetic Coupling
Media Temperature - Minimum
32 Degrees F

Description

The LITTLE GIANT PUMP 581604 is a magnetic drive pump for transferring highly corrosive chemicals and solutions in in-line, non-submersed applications. Its seal-less magnetic drive is designed to eliminate seal-caused friction loss, wear, contamination, and leakage. This MD-HC Series pump uses a 1/25 hp totally enclosed fan-cooled motor and is configured for gravity-feed operation, requiring the pump inlet to be lower than the liquid level.

Key Features:

  • Seal-less magnetic drive: Designed for corrosive chemicals and solutions while reducing leakage and seal-related wear.
  • Construction materials: Glass-filled polyphenylene housing and volute, carbon impeller components, ceramic shaft and thrust washers, and FKM gasket/O-ring materials.
  • Motor: 1/25 hp shaded pole motor with totally enclosed fan-cooled enclosure, single phase, 115V AC, 60 Hz.
  • Run dry capability: Can run dry for up to 8 hours.
  • Flow performance: Up to 9.2 gpm at 3 ft of head, 8.1 gpm at 6 ft, 6.5 gpm at 9 ft, and 2.6 gpm at 15 ft.
  • Maximum head: 16.3 ft.
  • Connection size: 1/2 in inlet and 1/2 in discharge with NPT threads.
  • Liquid handling limits: Maximum specific gravity 1.1, maximum viscosity 100 SSU, and media temperature up to 200°F.
  • Installation details: Horizontal mounting design for non-submersed, gravity-feed use.
  • Power cord: 6 ft 3-conductor SJO cord with 3-prong molded plug.
