Shop All Carbon Monoxide and Smoke Detectors
Belimo

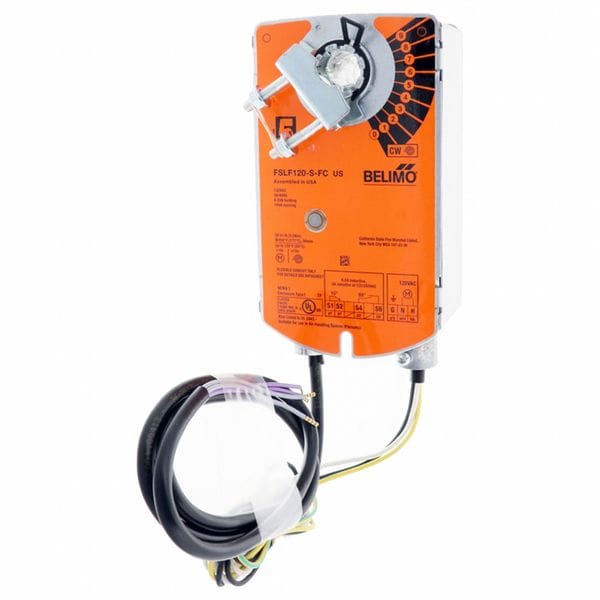

Actuator, Damper, 30 in-lb, 120V AC

product price: $533.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Width 3 7/8 in
  • Overall Height 7 in
  • Includes 18 GA Appliance Cable, 1 m with 1/2 in Conduit Connector
  • Standards C-UL-US Acc to UL60730-1A/-2-14, CAN/CSA E60730-1:02 NYC Department of Buildings MEA 197-07-M California State Fire Marshal Listing 3210-1593:102, ISO 9001
  • Depth 3 1/4 in
See all product information

Product Information

Dimensions

Overall Width 3 7/8 in
Overall Height 7 in
Depth 3 1/4 in

Details

Item Actuator
Includes 18 GA Appliance Cable, 1 m with 1/2 in Conduit Connector
Standards C-UL-US Acc to UL60730-1A/-2-14, CAN/CSA E60730-1:02 NYC Department of Buildings MEA 197-07-M California State Fire Marshal Listing 3210-1593:102, ISO 9001
Spring Return Spring Return
Signal Type Floating Point
Power Rating 4W
Input Voltage 120V AC
Minimum Operating Temperature 32 Degrees F
Housing Material Finish Galvanized
NEMA Rating 1
Plenum Rating Plenum Rated
For Use With Building Automation Systems Building Automation System Compatible
IP Rating IP30
Valve Application Damper
Power Consumption 18 VA
Contact Form SPST
Number of Auxiliary Switches 2
Time to Close 15 sec
Fire Application Rating Fire Application Rated
Housing Material Steel
Maximum Operating Temperature 122 Degrees F
Electrical Connection Type Hardwired
Shaft Rotation CW/CCW
Smoke Application Rating Smoke Application Rated
Weight 4.4 lb
Rated Torque 30 in-lb
Application Fire and Smoke Dampers

Description

Actuator, Valve Application Damper, Signal Type Floating Point, Rated Torque 30 in-lb, Input Voltage 120V AC, Output Signal Not Applicable, Contact Form SPST, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP30, Spring Return Spring Return, Smoke Application Rating Smoke Application Rated, Fire Application Rating Fire Application Rated, Time to Close 15 sec, Shaft Rotation CW/CCW
