  9. Hydronic Circulating Pump, 1/12 hp, 115V, 1 Phase, Flange Connection

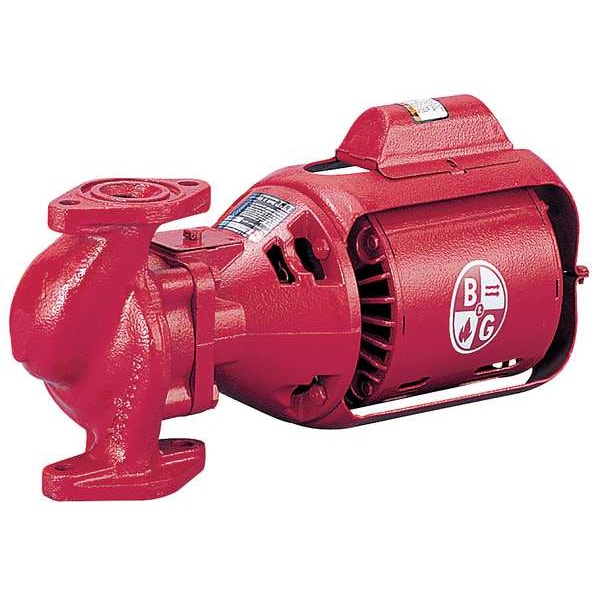

Bell & Gossett Hydronic Circulating Pump, 1/12 hp, 115V, 1 Phase, Flange Connection 106189 - main

Hydronic Circulating Pump, 1/12 hp, 115V, 1 Phase, Flange Connection

  • Mfr # 106189

  • Zoro # G0282931

product price: $856.80
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/12 hp
Series
100 NFI
Inlet/Outlet Size
3/4 in to 1-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
106189
Zoro #
G0282931
UPC #
683328209296
Country of Origin
United States

Dimensions

Inlet/Outlet Size
3/4 in to 1-1/2 in
Face to Face Dimension
6 3/8 in
Overall Length
14.88 in
Overall Width
4.25 in
Compatible Discharge Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Compatible Intake Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Manufacturer Warranty Length
1 yr
For Discharge Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Inlet Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in

Details

Item
Hydronic Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/12 hp
Series
100 NFI
Pump Type
3-Piece
Number of Speeds
1
Max. GPM @ Head
32 gpm @ 1 ft
Maximum Feet of Head
8 ft
Min. GPM @ Head
9 gpm @ 8 ft
Connection Type
Flange
Amps
1.75 A
Drive Type
Direct
Shut-Off
8 ft
Best Efficiency GPM @ Head
17 gpm @ 6 ft
Impeller Material
Steel
Loop Configuration
Closed
Includes
Auto Thermal Protection, Bolts, Gaskets, Oil
Thermal Protection
Auto
Pump Mount
Polypropylene or Brass
Shaft Material
Carbon/Ceramic
For Use With Potable Systems
Yes
Maximum RPM
1,725 RPM
Series Family
Series 100
Maximum Flow Rate @ 5 Feet of Head
22 gpm
Maximum Operating Pressure
125 psi
Frequency
60 Hz
Maximum Flow Rate @ 10 Feet of Head
32 gpm
Maximum Media Temperature
225 Degrees F
Flange or Union Included
No
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Nameplate Voltage
115V AC
Pump Housing Material
Cast Iron
Maximum Flow Rate @ 1 Feet of Head
32 gpm
Includes Volute
Volute Included
Flow Rate - Maximum
35 gpm
Includes Flange
No Flange Included
Revolutions Per Minute - Maximum
1,725 RPM
Media Temperature - Minimum
14 Degrees F
For Low Lead Compliance Level
EX
Full Load Current
1.75 A
Feet of Head - Maximum
8 ft
Media Temperature - Maximum
225 Degrees F
Connection Standard
Flange
Motor Enclosure Design
Open Drip Proof
Pump Casing Material
Cast Iron
Operating Pressure - Maximum
125 psi

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/12 hp, Maximum Feet of Head 8 ft, Maximum Flow Rate @ 1 Foot of Head 32 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type 3-Piece, Series Family Series 100, Maximum Flow Rate @ 5 Feet of Head 22 gpm, Series 100 NFI, Amps 1.75 A

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
