Big Joe

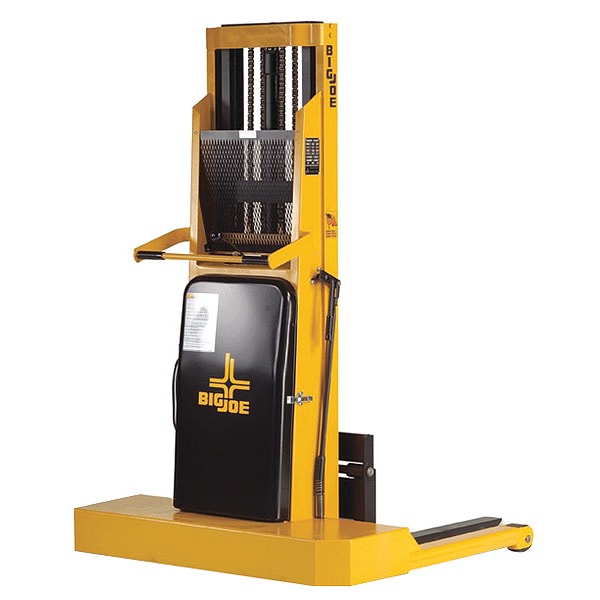

Manual Straddle Stackers

product price: $5,958.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Overall Height 71 1/2 in
  • Overall Length 46 1/2 in
  • Overall Width 33 7/8 in
  • Color Black, Yellow
  • Load Capacity 2,000 lb
See all product information

Product Information

  • Brand Big Joe
  • MFR # IBH 2018-A5 w/ Adj. Straddle
  • Zoro # G2778733
  • Country of Origin United States
  • Category Stackers

Dimensions

Overall Height 71 1/2 in
Overall Length 46 1/2 in
Overall Width 33 7/8 in
Fork Length 30 in
Fork Width 24 in
Drive Wheel Diameter 4 in
Base Outside Width 34 in
Caster Wheel Dia. 6 in
Maximum Lifting Height 4 ft 9 in
Caster Mounting Height 1 1/2 in
Width Between Forks 6 in
Turning Radius 45 11/16 in
Width Across Forks 24 in
Overall Height with Forks Raised 74 in
Base Inside Width 26 in
Overall LxWxH 46 1/2 in x 33 7/8 in x 74 in
Lifting Height Range 1 1/2 in to 4 ft 9 in
Minimum Lifting Height 1 1/2 in

Details

Color Black, Yellow
Load Capacity 2,000 lb
Item Manual Straddle Stackers: 2,000 lb Load Capacity
Assembled Yes
Lift Mechanism Hydraulic
Caster Wheel Type Rigid
Frame Material Steel
Load Center 18 in
Lift Control Push Button
Battery Type Polycase Lead Acid
Caster Wheel/Tread Material Steel
Drive Wheel/Tread Material Steel
Base Material Steel
Caster Frame Material Steel
Standards ANSI B56.10
Battery Voltage 12V DC
Features Compact Vehicle Design, Forks Provide for Easy Adjustment, Chrome Plated Lift Cylinder With Pressure Compensation Lowering Valves
Base Type Adjustable Straddle
Charger Type On-Board
Caster Brake Type No Caster Brake
Method of Construction Welded
Operation Manual
Battery Amp Hours 125 Ah
Charger Voltage 12 V
Number of Batteries 1
Fork Type Adjustable

Description

Manual, Base Type Adjustable Straddle, Lift Control Push Button, Lift Mechanism Hydraulic, Fork Type Adjustable, Load Capacity 2,000 lb, Fork Length 30 in, Fork Width 24 in, Width Between Forks 6 in, Width Across Forks 24 in, Minimum Lifting Height 1 1/2 in, Maximum Lifting Height 4 ft 9 in, Lifting Height Range 1 1/2 in to 4 ft 9 in, Overall Length 46 1/2 in, Overall Width 33 7/8 in, Overall Height with Forks Raised 74 in, Base Outside Width 34 in, Load Center 18 in

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • This item has been restricted from sale in the following states: AE, AK, AP, AS, GU, HI, MP, PR, VI
