This item is Discontinued.

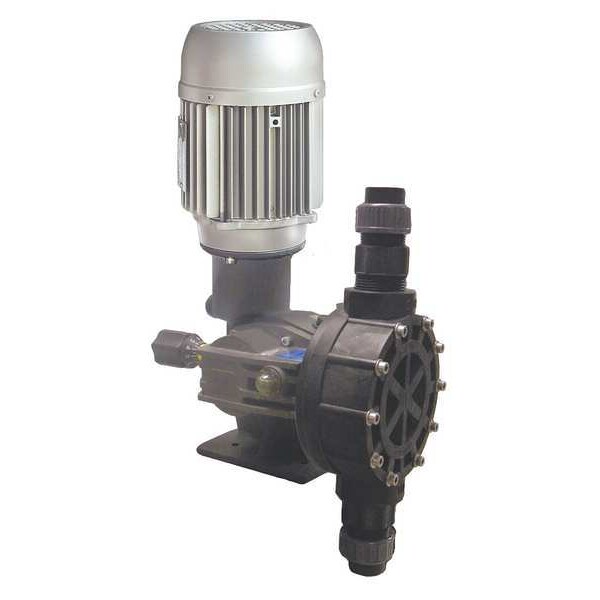

Blackline Chemical Metering Pump, 17inH, 8328cc/Min. MD3GKTPN1A-XXX

Chemical Metering Pump, 17inH, 8328cc/Min. (Discontinued)

  • Mfr # MD3GKTPN1A-XXX
  • Zoro # G1882907
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MD3GKTPN1A-XXX
Zoro #
G1882907
UPC #
-
Country of Origin
Italy

Dimensions

Height
17 in
Width
10 in
Overall Width
10 in
Intake Connection Size
1/2 in
Overall Height
17 in
Discharge Connection Size
1/2 in

Details

Chemical Metering Pump Type
Diaphragm
Flow Rate Output Control
Adjustable
Max. Flow (gpd) - Pumps
3168.00 gpd
Voltage
115/230
Diaphragm Material
PTFE
Max. Pressure - Pumps
75 psi
Voltage - Pumps
115/230V AC
Phase - Pumps
1
Max. Viscosity - Pumps
500 cps
HP - Pumps
1/2 hp
Turn Down Ratio - Pumps
10:1
Reproducibility - Pumps
+/-2.0%
Item - Chemical Metering Pumps
Chemical Metering Pump
Phase
Single
Seals and O-Rings
PTFE
Max. Flow Rate
3168 gpd
Body Material
Aluminum
Head and Fitting Material
PVDF
Reproducibility
+/-2.0%
Item
Chemical Metering Pump
Ball Material - Pumps
Pyrex
Features
Long Life Diaphragm, Oil Immersed Gear Train, Robust Wet End Design
Motor HP
1/2
Self-Priming
Yes
Standards
IEC71, NEMA 56C
Max. Strokes per Minute
118 stroke/min
Ball Material
Pyrex
Pump Type
Diaphragm
Suction Lift
4 ft
Max. Viscosity
500 CPS
Seals and O-Rings - Pumps
PTFE
Motor RPM
1,725 RPM
Max. Pressure
75 psi
Includes
Pump with Motor
Body Material - Pumps
Aluminum
Turn Down Ratio
10:1
Tubing Material
Not Included
Hz
50/60
Head and Fitting Material - Pumps
PVDF
cc/Min.
8,328 cc/min
Number of Feeds
1
Min. Flow Rate
316.80 gpd
Head Material
PVDF
Discharge Connection Type
NPT
Nameplate Voltage
115/230V AC
Check Ball Material
Pyrex
Seal Material
PTFE
Control Programs
Manual Control
Motor Speed (Maximum)
1,725 RPM
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 100%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Oils, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Sulfuric Acid 90%, Water
Frequency
60 Hz
Stroke Rate (Maximum)
118 stroke/min
Pump Drive Type
Electric Motor
Intake Connection Type
Tube
Media Temperature (Maximum)
104 Degrees F
Flow Rate (Minimum)
316.8 gpd
Degassing Valve Included
No
Media Temperature (Minimum)
14 Degrees F
Ambient Temperature (Minimum)
14 Degrees F
Fitting Material
PVDF
Flow Rate (Maximum)
3,168 gpd
Operating Pressure (Maximum)
75 psi
Horsepower (Maximum)
1/2 hp
Ambient Temperature (Maximum)
104 Degrees F
Viscosity (Maximum)
500 cps
Housing Material
Aluminum
Priming
Self-Priming

Description

Chemical Metering Pump

Documents & Resources

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
