Blickle Swivel Plate Caster, PU, 3-1/8", Brake LK-PATH 80KF-14-FI - main

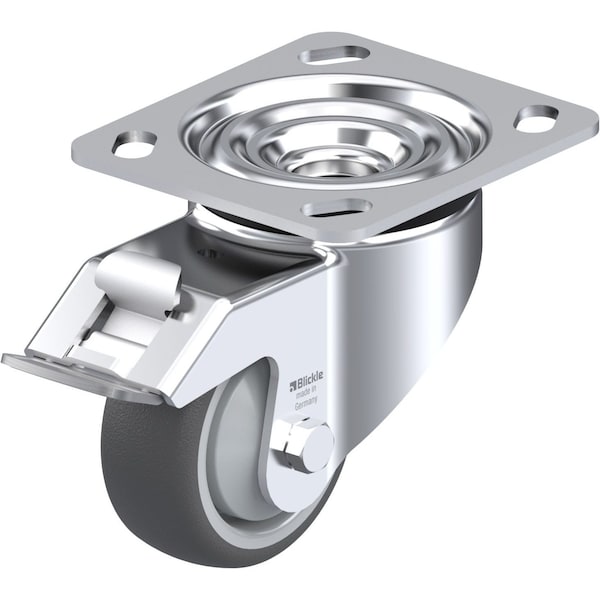

Swivel Plate Caster, PU, 3-1/8", Brake

  • Mfr # LK-PATH 80KF-14-FI

  • Zoro # G0891727

product price:  $46.79
/ea

Key Features

Overall Height
4.33in
Wheel Width
1-1/4in
Caster Sub-Type
Swivel
Load Rating
330 lb.
Stem Dia.
No Stem
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LK-PATH 80KF-14-FI
Zoro #
G0891727
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
4.33in
Wheel Width
1-1/4in
Stem Dia.
No Stem
Wheel Dia.
3-1/8in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-1/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Caster Sub-Type
Swivel
Load Rating
330 lb.
Item
Swivel Caster With Brake
Number of Wheels
1
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Replacement Wheel
Mfr. No. PATH 80/8-46K
Core Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Caster Brake Type
Stop Fix Brake (Total Lock)
System of Measurement
Inch
Standards
RoHS, ICWM
Tread Color
Dark Gray
Tread
Standard
Includes
Stop-Fix Total-Lock Brake
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Medium Duty
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Includes Thread Guards
Yes
ESD Conductive
No
Series
LK Series
Tread Shape
Standard
Load Capacity
330 lb
Number of Mounting Holes
4
Wheel Hardness Rating
94 Shore A
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
