Blickle Swivel Plate Caster, PU, 8", Brake LEH-ALTH 200K-14-FI - main

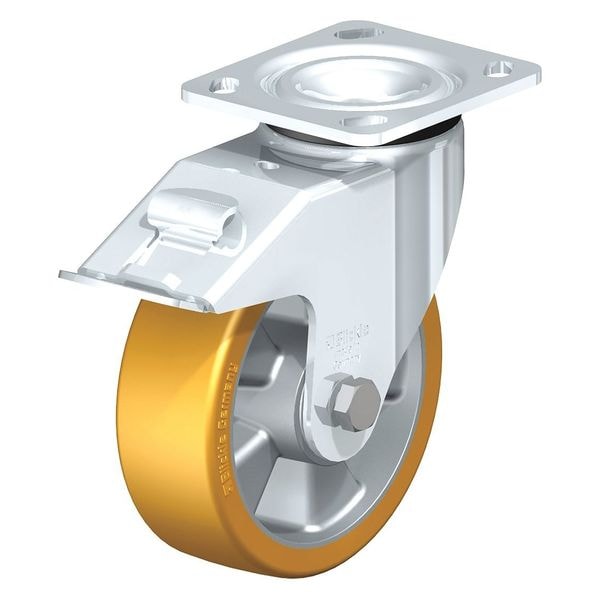

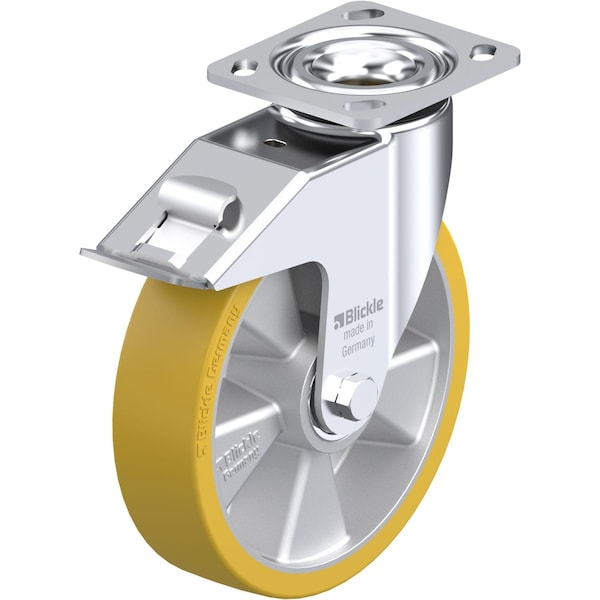

Swivel Plate Caster, PU, 8", Brake

  • Mfr # LEH-ALTH 200K-14-FI

  • Zoro # G0893711

product price:  $134.99
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Load Rating
1250 lb.
Stem Dia.
No Stem
Overall Height
9-5/8in
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LEH-ALTH 200K-14-FI
Zoro #
G0893711
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
9-5/8in
Wheel Dia.
8in
Wheel Width
2in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6-3/8 in
Mounting Plate Thickness
0.197 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Stem Type
No Stem/Plate Included
Load Rating
1250 lb.
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Included
Yes
Item
Swivel Caster With Brake
Replacement Wheel
Mfr. No. ALTH 200/20K
Caster Brake Type
Stop Fix Brake (Total Lock)
Non-Marking
Yes
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Includes
Stop-Fix Total-Lock Brake
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
System of Measurement
Inch
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Core Color
Silver
Tread
Standard
Tread Color
Light Brown
Extended Lead
No
Caster Frame Material
Steel
Swivel Raceway Type
Double Ball
Wheel Core Material
Aluminum
Accessories
Optional: RI-04.14 (Directional Lock)
Includes Thread Guards
No
Number of Mounting Holes
4
Series
LEH Series
ESD Conductive
No
Tread Shape
Standard
Load Capacity
1250 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Heavy-Duty
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
