  6. Swivel Plate Caster, PU, 5", Brake, Caster Load Rating Range: Light-Duty

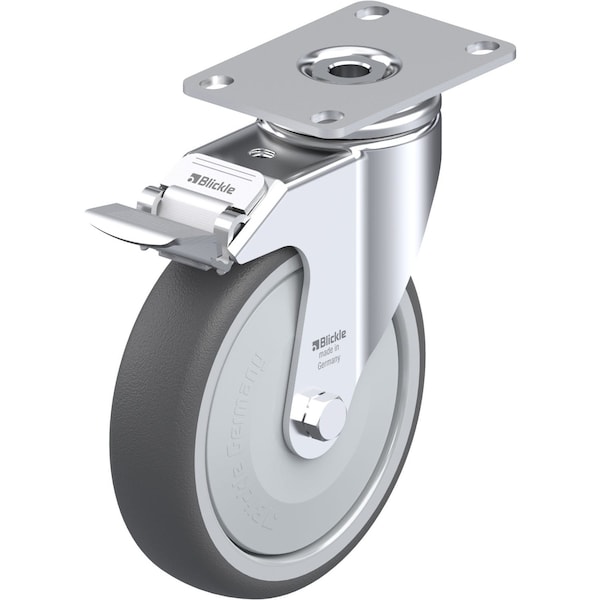

Blickle Swivel Plate Caster, PU, 5", Brake, Caster Load Rating Range: Light-Duty LKPA-PATH 126KF-12-FI - main

Swivel Plate Caster, PU, 5", Brake, Caster Load Rating Range: Light-Duty

  • Mfr # LKPA-PATH 126KF-12-FI

  • Zoro # G0889417

product price:  $31.15
/ea

Key Features

Stem Dia.
No Stem
Caster Stem Type
No Stem/Plate Included
Overall Height
6-5/16in
Caster Brake Included
Yes
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPA-PATH 126KF-12-FI
Zoro #
G0889417
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
6-5/16in
Wheel Dia.
5in
Wheel Width
1-1/4in
Mounting Bolt Dia.
5/16 in
Swivel Radius
4-1/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster With Brake
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Number of Wheels
1
Load Rating
265 lb.
Caster Sub-Type
Swivel
System of Measurement
Inch
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Includes
Stop-Fix Total-Lock Brake
Replacement Wheel
Mfr. No. PATH 126/8K-FK
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Core Color
Gray
Tread
Standard
Tread Color
Dark Gray
Non-Marking
Yes
Caster Mounting Type
Plate
Caster Brake Type
Stop Fix Brake (Total Lock)
Standards
RoHS, ICWM, NSF
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Extended Lead
No
Caster Frame Material
Steel
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Duty
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Series
LKPA Series
Includes Thread Guards
Yes
Wheel Core Material
Nylon
Load Capacity
265 lb
ESD Conductive
No
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
