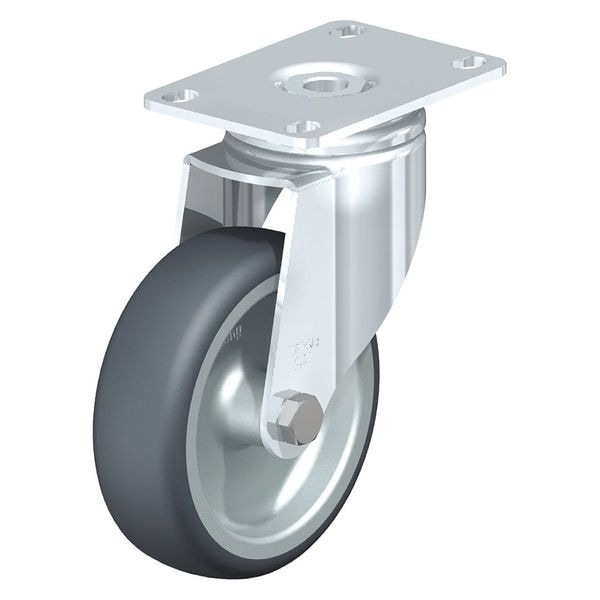

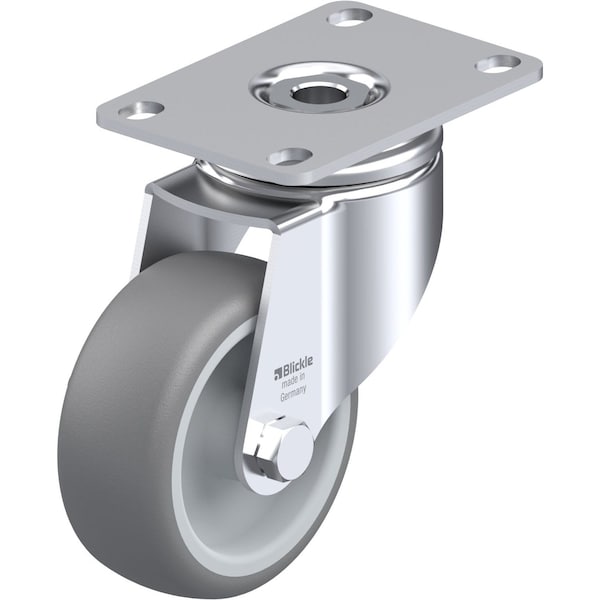

Swivel Plate Caster, TPR, 3-1/8", 220 lb.

Name: Swivel Plate Caster, TPR, 3-1/8", 220 lb.
Brand: Blickle
SKU: G0889633
Price: 24.89 USD
Availability: InStock

24.89

/ea

Stem Dia.

No Stem

Number of Wheels

Caster Stem Type

No Stem/Plate Included

Overall Height

4-3/8in

Wheel Dia.

3-1/8in

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: LKPA-TPA 80G-12
Zoro #: G0889633
UPC #: -
Country of Origin: Germany
Item: Plate Caster
Number of Wheels: 1
Caster Stem Type: No Stem/Plate Included
Load Rating: 220 lb
Caster Sub-Type: Swivel
Caster Brake Included: No
Tread: Standard
Core Color: Gray
Inside Bolt Hole Spacing: 1-3/4 in x 2-13/16 in
Non-Marking: Yes
Frame Finish: Zinc Plated
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color: Gray
Caster Brake Type: No Brake Included
System of Measurement: Inch
Caster Mounting Type: Plate
Standards: RoHS, ICWM, NSF
Outside Bolt Hole Spacing: 1-3/4 in x 3-1/16 in
Replacement Wheel: Mfr. No. TPA 80/12G
Caster Frame Material: Steel
Extended Lead: No
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Series: LKPA Series
ESD Conductive: No
Swivel Raceway Type: Double Ball
Number of Mounting Holes: 4
Includes Thread Guards: No
Wheel Core Material: Polypropylene
Load Rating Range: Light-Duty
Load Capacity: 220 lb
Tread Shape: Standard
Wheel Hardness Rating: 85 Shore A
Wheel Bearing Type: Plain
Wheel/Tread Material: Polypropylene/Thermoplastic Rubber Elastomer
Operating Temperature Range: -4 Degrees To 140 Degrees F
Load Capacity - Maximum: 220 lb
