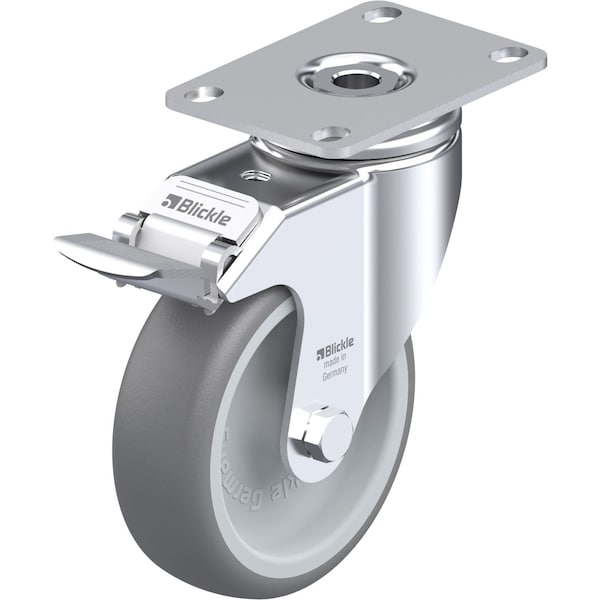

Blickle Swivel Plate Caster, TPR, 4", Brake LKPA-TPA 101G-12-FI - main

Swivel Plate Caster, TPR, 4", Brake

  • Mfr # LKPA-TPA 101G-12-FI

  • Zoro # G0889590

product price:  $27.39
/ea

Key Features

Wheel Width
1-1/4in
Load Rating
240 lb.
Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
Wheel Dia.
4in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPA-TPA 101G-12-FI
Zoro #
G0889590
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1-1/4in
Stem Dia.
No Stem
Wheel Dia.
4in
Overall Height
5-3/8in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-9/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Load Rating
240 lb.
Item
Swivel Caster With Brake
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Core Color
Gray
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Mounting Type
Plate
Tread
Standard
Caster Brake Type
Stop Fix Brake (Total Lock)
Standards
RoHS, ICWM, NSF
Non-Marking
Yes
System of Measurement
Inch
Tread Color
Gray
Includes
Stop-Fix Total-Lock Brake
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Replacement Wheel
Mfr. No. TPA 101/12G
Extended Lead
No
Caster Frame Material
Steel
Tread Shape
Standard
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Light-Duty
Swivel Raceway Type
Double Ball
Load Capacity
245 lb
Series
LKPA Series
ESD Conductive
No
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel Hardness Rating
85 Shore A
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Wheel Bearing Type
Plain
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Plate Caster
