  6. Swivel Plate Caster, Wht Nylon, 4", Brake, Caster Load Rating Range: Light-Duty

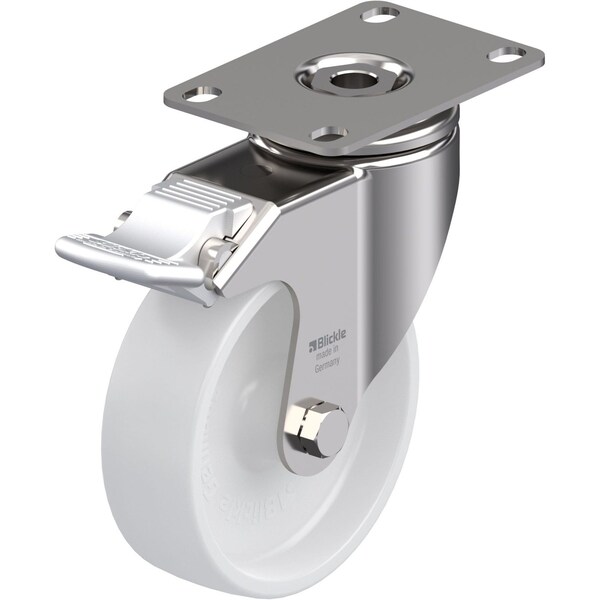

Blickle Swivel Plate Caster, Wht Nylon, 4", Brake, Caster Load Rating Range: Light-Duty LKPXA-PO 101G-12-FI - main

Swivel Plate Caster, Wht Nylon, 4", Brake, Caster Load Rating Range: Light-Duty

  • Mfr # LKPXA-PO 101G-12-FI

  • Zoro # G0889301

product price:  $58.59
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Width
1-1/4in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKPXA-PO 101G-12-FI
Zoro #
G0889301
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4in
Wheel Width
1-1/4in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.089 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
5-23/64in
Swivel Radius
3-9/16 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Load Rating
265 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Application
Retail, Industrial, Commercial, Corrosion Resistance
Tread Color
White
Frame Finish
Stainless Steel
Tread
Standard
Standards
RoHS, ICWM, NSF
Includes
Stop-Fix Total-Lock Brake
Replacement Wheel
Mfr. No. PO 101/12G
Extended Lead
No
ESD Conductive
No
Wheel Core Material
Nylon
Load Rating Range
Light-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Series
LKPXA Series
Includes Thread Guards
No
Load Capacity
265 lb
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
